CycleIdentifier_001
Download script
This script functions as a sophisticated market analysis tool designed to identify recurring price patterns, specifically focusing on "cycles" within the financial markets. Instead of simply looking at raw price movement, it attempts to distinguish between small-scale fluctuations (Minor Cycles) and larger, more significant trends (Major Cycles).
Here is a breakdown of the logic used by the script:
Core Logic & Data Processing
The tool begins by analyzing recent market volatility. It calculates a dynamic "range" based on historical price highs and lows over a specific period. This range acts as a benchmark to help the script understand how much the price typically moves.
To smooth out the "noise" of the market, the script applies several filters:
- Price Smoothing: It uses a moving average to establish a baseline "Cycle Price."
- Trend Direction: It utilizes specialized formulas (like Zero Lag or RSI) to determine the immediate momentum of the price. This helps the script decide whether the current movement is actually significant or just temporary vibration.
The Dual-Cycle System
The script operates on two distinct layers simultaneously:
1. Minor Cycle Identification: This layer tracks rapid, short-term changes in price. It monitors for "swings"—points where the price moves away from its previous path and then reaches a threshold of movement (the "Sweep"). When the price exceeds this specific threshold in one direction, the script identifies a transition point. It uses visual cues to highlight these smaller fluctuations.
2. Major Cycle Identification: This is a higher-level analysis. It looks for much larger movements by multiplying the standard volatility range by a "Major Cycle Strength" factor. By looking for these significant "sweeps," the script can identify broader trends that are less affected by day-to-day market noise.
Dynamic Switching & Filtering
The logic includes a sophisticated switching mechanism. It doesn't just mark every movement; it watches for specific conditions to be met before confirming a cycle change:
- Condition Monitoring: The script compares the current price against previous significant "peaks" or "troughs." Only when the price moves far enough to satisfy a pre-defined percentage or point distance does it trigger a new cycle.
- Optional Filters: Users can choose whether the script should strictly follow these momentum filters or allow for more raw price action. This allows the tool to be tuned for different types of trading styles—from aggressive to conservative.

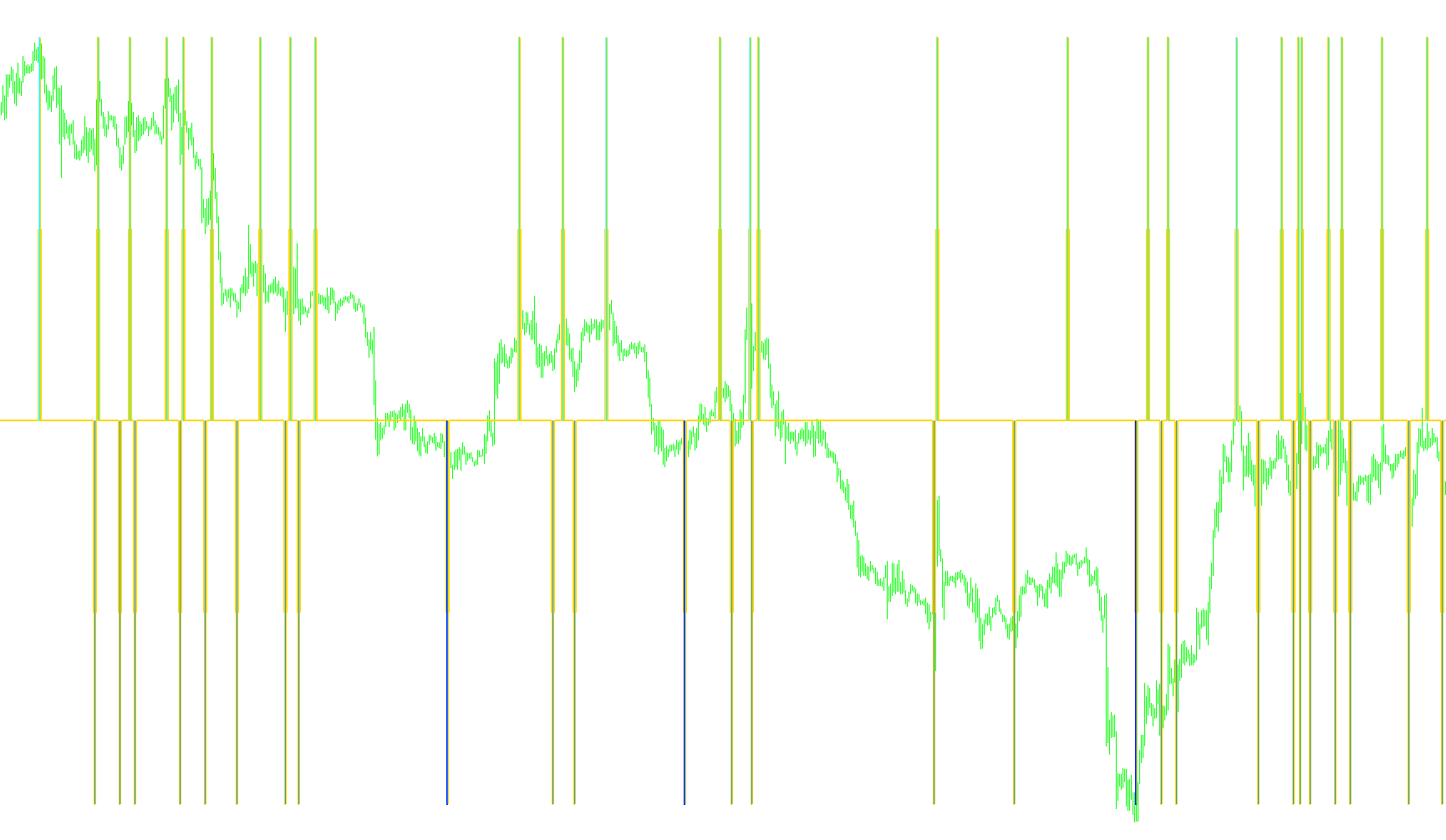

Visual Output
For the user, this logic translates into several visual indicators on the chart:
- Lines: Provide a baseline for the current cycle path.
- Histograms: Use different colors and thicknesses to represent "Buy" or "Sell" cycles.
- Small histograms generally represent the Minor Cycles.
- Larger, more prominent highlights indicate the Major Cycles.
In summary, the script acts as a "filter" for market noise, attempting to map out the underlying rhythmic behavior of price action by identifying significant turning points across both short-term and long-term timeframes.
Indicators Used
Miscellaneous
12
Views
0
Downloads
0
Favorites
CycleIdentifier_001
//+------------------------------------------------------------------+
//| CycleIdentifier.mq4 |
// |
//+------------------------------------------------------------------+
#property copyright ""
#property link ""
#property indicator_separate_window
#property indicator_buffers 6
#property indicator_color1 DarkGray
#property indicator_color2 Lime
#property indicator_color3 Red
#property indicator_color4 DarkGreen
#property indicator_color5 Brown
#property indicator_minimum -1.2
#property indicator_maximum 1.2
extern int PriceActionFilter=1;
extern int Length=3;
extern int MajorCycleStrength=4;
extern bool UseCycleFilter=false;
extern int UseFilterSMAorRSI=1;
extern int FilterStrengthSMA=12;
extern int FilterStrengthRSI=21;
double LineBuffer[];
double MajorCycleBuy[];
double MajorCycleSell[];
double MinorCycleBuy[];
double MinorCycleSell[];
double ZL1[];
double CyclePrice = 0.0, Strength =0.0, SweepA = 0.0, SweepB = 0.0;
int Switch = 0, Switch2 = 0, SwitchA = 0, SwitchB = 0, SwitchC = 0, SwitchD = 0, SwitchE = 0, SwitchAA = 0, SwitchBB = 0;
double Price1BuyA = 0.0, Price2BuyA = 0.0;
int Price1BuyB = 1.0, Price2BuyB = 1.0;
double Price1SellA = 0.0, Price2SellA = 0.0;
int Price1SellB = 0.0, Price2SellB = 0.0;
bool ActiveSwitch = True, BuySwitchA = FALSE, BuySwitchB = FALSE, SellSwitchA = FALSE, SellSwitchB = FALSE;
int BuySellFac = 01;
bool Condition1, Condition2, Condition3, Condition6;
int init() {
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
SetIndexBuffer(0,LineBuffer);
SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,3);
SetIndexBuffer(1,MajorCycleBuy);
SetIndexStyle(2,DRAW_HISTOGRAM,STYLE_SOLID,3);
SetIndexBuffer(2,MajorCycleSell);
SetIndexStyle(3,DRAW_HISTOGRAM,STYLE_SOLID,1);
SetIndexBuffer(3,MinorCycleBuy);
SetIndexStyle(4,DRAW_HISTOGRAM,STYLE_SOLID,1);
SetIndexBuffer(4,MinorCycleSell);
SetIndexStyle(5,DRAW_NONE);
SetIndexBuffer(5,ZL1);
SetIndexEmptyValue(1,0.0);
SetIndexEmptyValue(2,0.0);
SetIndexEmptyValue(3,0.0);
SetIndexEmptyValue(4,0.0);
SetIndexEmptyValue(5,0.0);
return(0);
}
int deinit() {return(0);}
int start() {
int counted_bars=IndicatorCounted();
if(counted_bars<0) return(-1);
// if(counted_bars>0) counted_bars--;
// int position=Bars-1;
int position=Bars-counted_bars;
if (position<0) position=0;
int rnglength = 250;
double range = 0.0, srange = 0.0;
for (int pos = position; pos >=0; pos--)
{
srange = 0.0;
int j = 0;
for (int i=0;i<rnglength;i++)
{
j++;
int posr = pos + i;
if (posr >= Bars)
break;
srange = srange + (High[posr] - Low[posr]);
}
range = srange / j * Length;
int BarNumber = Bars-pos; //??????????
if (BarNumber < 0)
BarNumber = 0;
CyclePrice = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos);
if (UseFilterSMAorRSI == 1)
ZL1[pos] = ZeroLag(CyclePrice,FilterStrengthSMA, pos);
if (UseFilterSMAorRSI == 2)
ZL1[pos] = ZeroLag( iRSI(NULL, 0, 14, CyclePrice, FilterStrengthRSI ), FilterStrengthRSI, pos);
if (ZL1[pos] > ZL1[pos+1])
SwitchC = 1;
if (ZL1[pos] < ZL1[pos+1])
SwitchC = 2;
if (BarNumber <= 1)
{
if (Strength == 0)
SweepA = range;
else
SweepA = Strength;
Price1BuyA = CyclePrice;
Price1SellA = CyclePrice;
}
/* ***************************************************************** */
if (BarNumber > 1)
{
if (Switch > -1)
{
if (CyclePrice < Price1BuyA)
{
if (UseCycleFilter && (SwitchC == 2) && BuySwitchA )
{
MinorCycleBuy[pos + BarNumber - Price1BuyB] = 0; //MinorBuySell
LineBuffer[pos + BarNumber - Price1BuyB ] = 0; //line
}
if (!UseCycleFilter && BuySwitchA)
{
MinorCycleBuy[pos +BarNumber - Price1BuyB] = 0;
LineBuffer[pos +BarNumber - Price1BuyB] = 0;
}
Price1BuyA = CyclePrice;
Price1BuyB = BarNumber;
BuySwitchA = TRUE;
}
else if (CyclePrice > Price1BuyA)
{
SwitchA = BarNumber - Price1BuyB;
if (!UseCycleFilter)
{
MinorCycleBuy[pos +SwitchA] = -1;//MinorBuySell - DarkGreen
LineBuffer[pos +SwitchA] = -1;//line
}
if (UseCycleFilter && SwitchC == 1)
{
MinorCycleBuy[pos +SwitchA] = -1; //MinorBuySell
LineBuffer[pos +SwitchA] = -1; //line
SwitchD = 1;
}
else
{
SwitchD = 0;
}
BuySwitchA = TRUE;
double cyclePrice1 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchA);
if (ActiveSwitch)
{
Condition1 = CyclePrice - cyclePrice1 >= SweepA;
}
else
{
Condition1 = CyclePrice >= cyclePrice1 * (1 + SweepA / 1000);
}
if (Condition1 && SwitchA >= BuySellFac)
{
Switch = - 1;
Price1SellA = CyclePrice;
Price1SellB = BarNumber;
SellSwitchA = FALSE;
BuySwitchA = FALSE;
}
}
}
if(Switch < 1)
{
if (CyclePrice > Price1SellA)
{
if (UseCycleFilter && SwitchC == 1 && SellSwitchA )
{
MinorCycleSell[pos +BarNumber - Price1SellB] = 0; //MinorBuySell
LineBuffer[pos +BarNumber - Price1SellB ] = 0; //line
}
if (!UseCycleFilter && SellSwitchA )
{
MinorCycleSell[pos +BarNumber - Price1SellB] = 0;//MinorBuySell
LineBuffer[pos +BarNumber - Price1SellB] = 0;//line
}
Price1SellA = CyclePrice;
Price1SellB = BarNumber;
SellSwitchA = TRUE;
}
else if (CyclePrice < Price1SellA)
{
SwitchA = BarNumber - Price1SellB;
if (!UseCycleFilter)
{
MinorCycleSell[pos +SwitchA] = 1; // MinorBuySell darkRed
LineBuffer[pos +SwitchA] = 1; //"CycleLine"
}
if (UseCycleFilter && (SwitchC == 2))
{
MinorCycleSell[pos +SwitchA] = 1;//MinorBuySell darkRed
LineBuffer[pos +SwitchA] = 1;//CycleLine
SwitchD = 2;
}
else
SwitchD = 0;
SellSwitchA = TRUE;
double cyclePrice2 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchA);
if (ActiveSwitch)
Condition1 = (cyclePrice2 - CyclePrice) >= SweepA;
else
Condition1 = CyclePrice <= (cyclePrice2 * (1 - SweepA / 1000));
if (Condition1 && SwitchA >= BuySellFac)
{
Switch = 1;
Price1BuyA = CyclePrice;
Price1BuyB = BarNumber;
SellSwitchA = FALSE;
BuySwitchA = FALSE;
}
}
}
}
LineBuffer[pos] = 0;
MinorCycleBuy[pos] = 0;
MinorCycleSell[pos] = 0;
if (BarNumber == 1)
{
if (Strength == 0)
SweepB = range * MajorCycleStrength;
else
SweepB = Strength * MajorCycleStrength;
Price2BuyA = CyclePrice;
Price2SellA = CyclePrice;
}
if (BarNumber > 1)
{
if (Switch2 > - 1)
{
if (CyclePrice < Price2BuyA)
{
if (UseCycleFilter && SwitchC == 2 && BuySwitchB )
{
MajorCycleBuy [pos +BarNumber - Price2BuyB] = 0; //MajorBuySell,green
// LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line -----
}
if (!UseCycleFilter && BuySwitchB )
{
MajorCycleBuy [pos +BarNumber - Price2BuyB] = 0;//MajorBuySell,green
// LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line-----------
}
Price2BuyA = CyclePrice;
Price2BuyB = BarNumber;
BuySwitchB = TRUE;
}
else if (CyclePrice > Price2BuyA)
{
SwitchB = BarNumber - Price2BuyB;
if (!UseCycleFilter)
{
MajorCycleBuy [pos +SwitchB] = -1; //MajorBuySell green
// LineBuffer[pos + SwitchB] = -1; //line--------------
}
if (UseCycleFilter && SwitchC == 1)
{
MajorCycleBuy [pos +SwitchB] = -1; //MajorBuySell green
// LineBuffer[pos + SwitchB] = -1; //line-----------------
SwitchE = 1;
}
else
SwitchE = 0;
BuySwitchB = TRUE;
double cyclePrice3 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchB);
if (ActiveSwitch)
Condition6 = CyclePrice - cyclePrice3 >= SweepB;
else
Condition6 = CyclePrice >= cyclePrice3 * (1 + SweepB / 1000);
if (Condition6 && SwitchB >= BuySellFac)
{
Switch2 = - 1;
Price2SellA = CyclePrice;
Price2SellB = BarNumber;
SellSwitchB = FALSE;
BuySwitchB = FALSE;
}
}
}
if (Switch2 < 1)
{
if (CyclePrice > Price2SellA )
{
if (UseCycleFilter && SwitchC == 1 && SellSwitchB )
{
MajorCycleSell [pos +BarNumber - Price2SellB] = 0; //"MajorBuySell",red
// LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
}
if (!UseCycleFilter && SellSwitchB )
{
MajorCycleSell [pos +BarNumber - Price2SellB] = 0;//"MajorBuySell",red
// LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
}
Price2SellA = CyclePrice;
Price2SellB = BarNumber;
SellSwitchB = TRUE;
}
else if (CyclePrice < Price2SellA)
{
SwitchB = BarNumber - Price2SellB ;
if (!UseCycleFilter)
{
MajorCycleSell[pos + SwitchB] = 1; //"MajorBuySell",red
// LineBuffer[pos + SwitchB ] = 1; //line -----
}
if (UseCycleFilter && SwitchC == 2)
{
MajorCycleSell [pos + SwitchB] = 1; //"MajorBuySell",red
// LineBuffer[pos + SwitchB ] = 1; //line -----
SwitchE = 2;
}
else
SwitchE = 0;
SellSwitchB = TRUE;
double cyclePrice4 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchB);
if (ActiveSwitch)
Condition6 = cyclePrice4 - CyclePrice >= SweepB;
else
Condition6 = CyclePrice <= cyclePrice4 * (1.0 - SweepB / 1000.0);
if (Condition6 && SwitchB >= BuySellFac)
{
Switch2 = 1;
Price2BuyA = CyclePrice;
Price2BuyB = BarNumber;
SellSwitchB = FALSE;
BuySwitchB = FALSE;
}
}
}
}
LineBuffer[pos] = 0;
MajorCycleSell[pos] = 0;
MajorCycleBuy[pos] = 0;
}
return(0);
}
double ZeroLag(double price, int length, int pos)
{
if (length < 3)
{
return(price);
}
double aa = MathExp(-1.414*3.14159 / length);
double bb = 2*aa*MathCos(1.414*180 / length);
double CB = bb;
double CC = -aa*aa;
double CA = 1 - CB - CC;
double CD = CA*price + CB*ZL1[pos+1] + CC*ZL1[pos+2];
return(CD);
}
