CycleIdentifier2

Download script
Author:
CycleIdentifier2

This script is designed to identify and visualize market "cycles"—the natural oscillations between price highs and lows—by categorizing them into two distinct layers: Minor Cycles and Major Cycles. Instead of just showing a simple trend line, it attempts to map the structural rhythm of the market to help traders see where the price is currently expanding or contracting.

Core Logic Overview

The script operates by monitoring price movements against smoothed averages. It looks for specific "turning points" where the price stops moving in one direction and begins to pivot. By identifying these pivots, it distinguishes between small, immediate price fluctuations (Minor) and larger, more significant structural shifts (Major).

Key Functional Components

1. Price Smoothing & Lag Reduction To ensure the data isn't too "noisy" from tiny candle flickers, the script uses a smoothed price action filter. It also incorporates a specialized calculation (Zero Lag) to ensure that the signals reacting to these cycles happen in near real-time, minimizing the delay typically found in standard moving averages.

2. Dynamic Range Calculation The tool calculates the "Sweep" or the typical range of price movement over a set period. This allows the script to understand what a "normal" move looks like for the current market condition. It uses this as a benchmark to decide if a price movement is significant enough to be considered a new cycle or just a minor correction.

3. Minor Cycle Detection (Short-Term) This layer tracks immediate pivots. The logic works by:

  • Monitoring when the current price falls below or rises above its previous pivot point.
  • Recording these points as "Buy" or "Sell" switches.
  • Applying a filter to confirm the strength of the move before highlighting it.

4. Major Cycle Detection (Long-Term) This is a high-level view of the market structure. It uses a higher multiplier (Strength) applied to the price range. It looks for much larger pivots than the minor cycles do. While the minor cycles show the "heartbeat" of the market, the major cycles identify the broader waves of trend and exhaustion.

5. Filtering and Validation The script includes logic to filter out false signals. Depending on your settings, it can cross-reference price movement with momentum indicators (like RSI) or specific moving average crossovers. This ensures that a cycle is only "confirmed" if it meets a minimum strength requirement, preventing the chart from becoming cluttered with insignificant price wobbles.

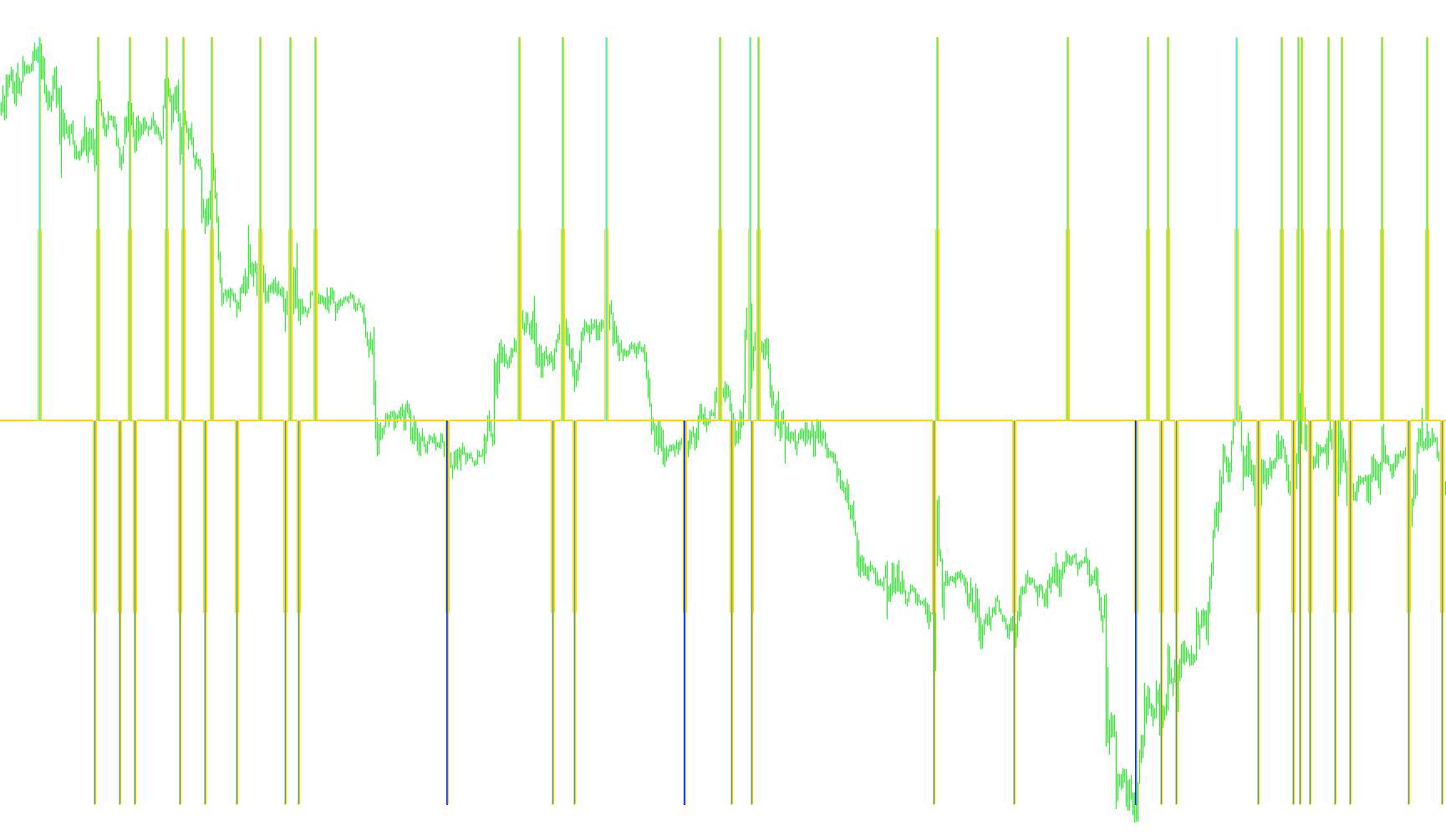

Visual Output

The script translates this complex logic into several visual elements on your chart:

  • Lines and Histograms: These provide a clear visual representation of where the pivots occur.
  • Color Coding: It uses distinct colors (such as Lime, Red, Dark Green, and Brown) to separate "Buy" and "Sell" cycle activities, allowing you to instantly see whether the market structure is currently in a bullish or bearish phase at both the minor and major levels.
Indicators Used
Moving average indicatorRelative strength index
Miscellaneous
Implements a curve of type %1
14 Views
0 Downloads
0 Favorites
CycleIdentifier2
//+------------------------------------------------------------------+
//|                                              CycleIdentifier.mq4 |
//  |
//+------------------------------------------------------------------+
#property copyright ""
#property link      ""

#property indicator_separate_window
#property indicator_buffers 6
#property indicator_color1 DarkGray

#property indicator_color2 Lime
#property indicator_color3 Red
#property indicator_color4 DarkGreen
#property indicator_color5 Brown

#property indicator_minimum -1.2
#property indicator_maximum 1.2

extern int       PriceActionFilter=1;
extern int       Length=3;
extern int       MajorCycleStrength=4;
extern bool      UseCycleFilter=false;
extern int       UseFilterSMAorRSI=1;
extern int       FilterStrengthSMA=12;
extern int       FilterStrengthRSI=21;

double LineBuffer[];
double MajorCycleBuy[];
double MajorCycleSell[];
double MinorCycleBuy[];
double MinorCycleSell[];
double ZL1[];

double CyclePrice = 0.0, Strength =0.0, SweepA = 0.0, SweepB = 0.0;
int Switch = 0, Switch2 = 0,	SwitchA = 0, SwitchB = 0, SwitchC = 0, SwitchD = 0, SwitchE = 0, SwitchAA = 0, SwitchBB = 0;
double Price1BuyA = 0.0, Price2BuyA = 0.0;
int Price1BuyB = 1.0, Price2BuyB = 1.0;
double Price1SellA = 0.0, Price2SellA = 0.0;
int Price1SellB = 0.0, Price2SellB = 0.0;
bool ActiveSwitch = True, BuySwitchA = FALSE, BuySwitchB = FALSE, SellSwitchA = FALSE, SellSwitchB = FALSE;
int BuySellFac = 01;
bool Condition1, Condition2, Condition3, Condition6;

int init()  {
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(0,LineBuffer);

   SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,3);
   SetIndexBuffer(1,MajorCycleBuy);

   SetIndexStyle(2,DRAW_HISTOGRAM,STYLE_SOLID,3);
   SetIndexBuffer(2,MajorCycleSell);

   SetIndexStyle(3,DRAW_HISTOGRAM,STYLE_SOLID,1);
   SetIndexBuffer(3,MinorCycleBuy);

   SetIndexStyle(4,DRAW_HISTOGRAM,STYLE_SOLID,1);
   SetIndexBuffer(4,MinorCycleSell);

   SetIndexStyle(5,DRAW_NONE);
   SetIndexBuffer(5,ZL1);

   SetIndexEmptyValue(1,0.0);
   SetIndexEmptyValue(2,0.0);
   SetIndexEmptyValue(3,0.0);
   SetIndexEmptyValue(4,0.0);
   SetIndexEmptyValue(5,0.0);
   return(0);
}

int deinit() {return(0);}

int start() {
   int counted_bars=IndicatorCounted();
   if(counted_bars<0) return(-1);
  // if(counted_bars>0) counted_bars--;
  // int position=Bars-1;
   int position=Bars-counted_bars;
   if (position<0) position=0;

   int rnglength = 250;
   double range = 0.0, srange = 0.0;
   for (int pos = position; pos >=0; pos--)
   {
      srange = 0.0;
      int j = 0;
      for (int i=0;i<rnglength;i++)
      {
         j++;
         int posr = pos + i;
         if (posr >= Bars)
            break;

         srange = srange + (High[posr] - Low[posr]);
      }
      range = srange / j * Length;
      int BarNumber = Bars-pos; //??????????
      if (BarNumber < 0)
            BarNumber = 0;

      CyclePrice = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos);

      if (UseFilterSMAorRSI == 1)
            ZL1[pos] = ZeroLag(CyclePrice,FilterStrengthSMA, pos);
      if (UseFilterSMAorRSI == 2)
            ZL1[pos] = ZeroLag( iRSI(NULL, 0, 14, CyclePrice, FilterStrengthRSI ), FilterStrengthRSI, pos);

      if (ZL1[pos] > ZL1[pos+1])
          SwitchC = 1;
      if (ZL1[pos] < ZL1[pos+1])
          SwitchC = 2;

      if (BarNumber <= 1)
      {
         if (Strength == 0)
     		  SweepA  = range;
     		else
     		  SweepA = Strength;
         Price1BuyA  = CyclePrice;
         Price1SellA  = CyclePrice;
      }

      /* ***************************************************************** */

      if (BarNumber > 1)
      {
         if (Switch > -1)
         {
            if (CyclePrice < Price1BuyA)
            {

                  if (UseCycleFilter && (SwitchC == 2) && BuySwitchA )
                  {
			           MinorCycleBuy[pos + BarNumber - Price1BuyB] = 0; //MinorBuySell
			           LineBuffer[pos + BarNumber - Price1BuyB ] = 0; //line
		            }

		            if (!UseCycleFilter && BuySwitchA)
		            {
			           MinorCycleBuy[pos +BarNumber - Price1BuyB] = 0;
			           LineBuffer[pos +BarNumber - Price1BuyB] = 0;
		            }
		            Price1BuyA = CyclePrice;
                  Price1BuyB = BarNumber;
                  BuySwitchA = TRUE;
            }
            else if (CyclePrice > Price1BuyA)
            {

   			      SwitchA = BarNumber - Price1BuyB;

		            if (!UseCycleFilter)
		            {
			           MinorCycleBuy[pos +SwitchA] = -1;//MinorBuySell - DarkGreen
			           LineBuffer[pos +SwitchA] = -1;//line
		            }

		            if (UseCycleFilter && SwitchC  == 1)
		            {
			           MinorCycleBuy[pos +SwitchA] = -1;  //MinorBuySell
			           LineBuffer[pos +SwitchA] = -1; //line
			           SwitchD = 1;
		            }
		            else
		            {
			           SwitchD = 0;
			         }

                  BuySwitchA = TRUE;

		            double cyclePrice1 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchA);
                  if (ActiveSwitch)
                  {
                        Condition1 = CyclePrice - cyclePrice1 >= SweepA;
                  }
                  else
                  {
                        Condition1 = CyclePrice >= cyclePrice1 * (1 + SweepA / 1000);
                  }
                  if (Condition1 && SwitchA >= BuySellFac)
                  {
                        Switch =  - 1;
                        Price1SellA = CyclePrice;
                        Price1SellB = BarNumber;
                        SellSwitchA = FALSE;
                        BuySwitchA = FALSE;
                  }
            }
         }
         if(Switch < 1)
         {
            if (CyclePrice > Price1SellA)
            {
               if (UseCycleFilter && SwitchC == 1 && SellSwitchA )
               {
				     MinorCycleSell[pos +BarNumber - Price1SellB] = 0; //MinorBuySell
				     LineBuffer[pos +BarNumber - Price1SellB ] = 0; //line
			      }
			      if (!UseCycleFilter && SellSwitchA )
			      {
                   MinorCycleSell[pos +BarNumber - Price1SellB] = 0;//MinorBuySell
                   LineBuffer[pos +BarNumber - Price1SellB] = 0;//line
               }
               Price1SellA = CyclePrice;
               Price1SellB = BarNumber;
               SellSwitchA = TRUE;
		       }
		       else if (CyclePrice < Price1SellA)
		       {
			      SwitchA = BarNumber - Price1SellB;
               if (!UseCycleFilter)
               {
                  MinorCycleSell[pos +SwitchA] = 1; // MinorBuySell darkRed
                  LineBuffer[pos +SwitchA] = 1; //"CycleLine"
			      }
      			if (UseCycleFilter && (SwitchC == 2))
      			{
				     MinorCycleSell[pos +SwitchA] = 1;//MinorBuySell darkRed
				     LineBuffer[pos +SwitchA] = 1;//CycleLine
				     SwitchD  = 2;
			      }
			      else
			         SwitchD  = 0;

               SellSwitchA = TRUE;
			      double cyclePrice2 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchA);

			      if (ActiveSwitch)
				     Condition1 = (cyclePrice2 - CyclePrice) >= SweepA;
			      else
				     Condition1 = CyclePrice <= (cyclePrice2 * (1 - SweepA / 1000));

			      if (Condition1 && SwitchA >= BuySellFac)
			      {
				      Switch = 1;
                  Price1BuyA = CyclePrice;
                  Price1BuyB = BarNumber;
                  SellSwitchA = FALSE;
                  BuySwitchA = FALSE;
               }
            }
         }
      }

      LineBuffer[pos] = 0;
      MinorCycleBuy[pos] = 0;
      MinorCycleSell[pos] = 0;

      if (BarNumber == 1)
      {
         if (Strength == 0)
            SweepB  = range *  MajorCycleStrength;
         else
            SweepB = Strength * MajorCycleStrength;

         Price2BuyA = CyclePrice;
         Price2SellA = CyclePrice;
      }

      if (BarNumber > 1)
      {
         if (Switch2  >  - 1)
         {
            if (CyclePrice < Price2BuyA)
            {
               if (UseCycleFilter && SwitchC == 2 && BuySwitchB )
				   {
				      MajorCycleBuy [pos +BarNumber - Price2BuyB] = 0; //MajorBuySell,green
		//		      LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line -----
               }
               if (!UseCycleFilter && BuySwitchB )
               {
                  MajorCycleBuy [pos +BarNumber - Price2BuyB] = 0;//MajorBuySell,green
  	//			      LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line-----------
               }
			      Price2BuyA = CyclePrice;
               Price2BuyB = BarNumber;
               BuySwitchB = TRUE;
            }
            else if (CyclePrice > Price2BuyA)
            {
			      SwitchB = BarNumber - Price2BuyB;

               if (!UseCycleFilter)
               {
                     MajorCycleBuy [pos +SwitchB] = -1; //MajorBuySell green
      //               LineBuffer[pos + SwitchB] = -1; //line--------------
               }
               if (UseCycleFilter && SwitchC  == 1)
               {
                  MajorCycleBuy [pos +SwitchB] = -1; //MajorBuySell green
     //             LineBuffer[pos + SwitchB] = -1; //line-----------------
                  SwitchE  = 1;
               }
               else
				     SwitchE  = 0;

               BuySwitchB = TRUE;
			      double cyclePrice3 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchB);
               if (ActiveSwitch)
                  Condition6 = CyclePrice - cyclePrice3 >= SweepB;
               else
                  Condition6 = CyclePrice >= cyclePrice3 * (1 + SweepB / 1000);

			      if (Condition6 && SwitchB >= BuySellFac)
			      {
                     Switch2 =  - 1;
                     Price2SellA = CyclePrice;
                     Price2SellB = BarNumber;
                     SellSwitchB = FALSE;
                     BuySwitchB = FALSE;
               }
            }
         }

         if (Switch2  < 1)
         {
            if (CyclePrice  > Price2SellA )
            {
			      if (UseCycleFilter && SwitchC  == 1 && SellSwitchB )
				   {
				         MajorCycleSell [pos +BarNumber - Price2SellB] = 0; //"MajorBuySell",red
		//			      LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
			     }
			      if (!UseCycleFilter && SellSwitchB )
				   {
				       MajorCycleSell [pos +BarNumber - Price2SellB] = 0;//"MajorBuySell",red
     //              LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
               }
			      Price2SellA = CyclePrice;
               Price2SellB = BarNumber;
               SellSwitchB = TRUE;
		       }
		       else if (CyclePrice < Price2SellA)
		       {
               SwitchB = BarNumber - Price2SellB ;

      			if (!UseCycleFilter)
      			{
      			   MajorCycleSell[pos + SwitchB] = 1; //"MajorBuySell",red
     // 		      LineBuffer[pos + SwitchB ] = 1; //line -----
			      }
		         if (UseCycleFilter && SwitchC  == 2)
		         {
      				MajorCycleSell [pos + SwitchB] = 1; //"MajorBuySell",red
      //		      LineBuffer[pos + SwitchB ] = 1; //line -----
		       		SwitchE  = 2;
			      }
			      else
				     SwitchE  = 0;

               SellSwitchB = TRUE;
	            double cyclePrice4 = iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchB);
			      if (ActiveSwitch)
                  Condition6 = cyclePrice4 - CyclePrice >= SweepB;
			      else
                  Condition6 = CyclePrice <= cyclePrice4 * (1.0 - SweepB / 1000.0);

			      if (Condition6 && SwitchB >= BuySellFac)
			      {
				        Switch2 = 1;
                     Price2BuyA = CyclePrice;
                     Price2BuyB = BarNumber;
                     SellSwitchB = FALSE;
                     BuySwitchB = FALSE;
               }
            }
         }
      }
      LineBuffer[pos] = 0;
      MajorCycleSell[pos] = 0;
      MajorCycleBuy[pos] = 0;
   }
   return(0);
}

double ZeroLag(double price, int length, int pos)
{
   if (length < 3)
   {
      return(price);
   }
   double aa = MathExp(-1.414*3.14159 / length);
   double bb = 2*aa*MathCos(1.414*180 / length);
   double CB = bb;
   double CC = -aa*aa;
   double CA = 1 - CB - CC;
   double CD = CA*price + CB*ZL1[pos+1] + CC*ZL1[pos+2];
   return(CD);
}
