Author:
CycleIdentifier2[LW]

This script is designed as a technical analysis tool for the MetaTrader 4 platform. Its primary purpose is to identify and visualize different "cycles" or waves in price movement, categorizing them into "Major" and "Minor" trends. By distinguishing between these layers of market activity, it helps traders see the broader structure of the market while also identifying smaller fluctuations.

Core Logic Overview

The script operates by analyzing price action through several layers of filtering and calculation:

1. Trend Smoothing and Filtering Instead of looking at raw, jagged price movements, the logic uses a weighted moving average to create a "Cycle Price." To ensure this price reacts quickly to new data without creating too much "noise," it employs a specialized calculation (Zero Lag) that can be set to use either a standard moving average or an RSI-based filter. This provides a cleaner foundation for identifying when a trend actually changes.

2. Dynamic Range Calculation The tool automatically calculates the "range" of the market over a specific period. This is used to define what constitutes a significant move. It essentially measures how much the price typically fluctuates so that it can distinguish between a minor wiggle in price and a meaningful structural shift.

3. Dual-Cycle Identification The logic processes the data twice to identify two different scales of market movement:

  • Minor Cycles: These represent smaller, more frequent fluctuations in price. The script tracks these by monitoring immediate shifts in the smoothed cycle price.
  • Major Cycles: These represent larger, sustained trends. The logic looks for much bigger "sweeps"—significant movements that exceed a multiplier of the standard market range.

4. Directional Switching and Validation The script constantly monitors whether the current price is moving above or below its previous "anchor" point. For a trend to be confirmed as a valid cycle shift, it doesn't just look at the direction; it also checks for specific conditions:

  • Price Action Filter: It validates if the move is strong enough based on the pre-defined filters (like SMA or RSI).
  • Strength Thresholds: It ensures the move has traveled a sufficient distance (the "Sweep") to be considered a valid turn in the cycle.

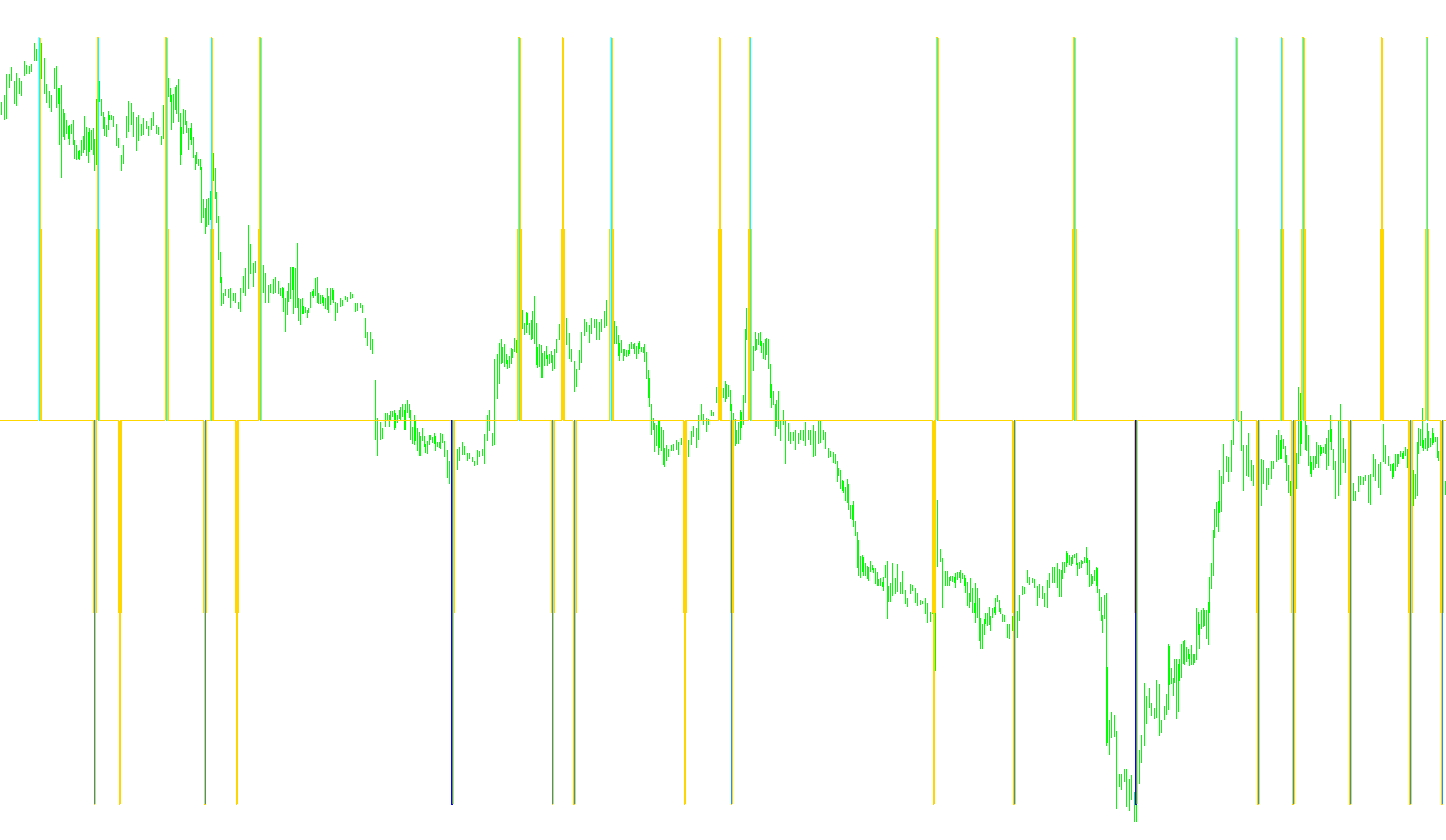

Visual Output

The script translates this logic into a visual display on a separate window:

  • Lines and Histograms: It draws specific markers to indicate when a Major Buy or Sell cycle has been identified.
  • Color Coding: It uses distinct colors (such as Lime, Red, Dark Green, and Brown) to differentiate between different types of cycles (Buying vs. Selling; Major vs. Minor).
  • Filtering Logic: Depending on the settings, it can "hide" or zero out certain signals if they do not meet the specific strength requirements, preventing the visual display from becoming cluttered with insignificant price movements.
13 Views
0 Downloads
0 Favorites
CycleIdentifier2[LW]
//+------------------------------------------------------------------+
//|                                              CycleIdentifier.mq4 |
//  |
//+------------------------------------------------------------------+
#property copyright ""
#property link      ""

#property indicator_separate_window
#property indicator_buffers 6
#property indicator_color1 DarkGray

#property indicator_color2 Lime
#property indicator_color3 Red
#property indicator_color4 DarkGreen
#property indicator_color5 Brown

#property indicator_minimum -1.2
#property indicator_maximum 1.2

extern int       PriceActionFilter=1;
extern int       Length=3;
extern int       MajorCycleStrength=4;
extern bool      UseCycleFilter=false;
extern int       UseFilterSMAorRSI=1;
extern int       FilterStrengthSMA=12;
extern int       FilterStrengthRSI=21;

double LineBuffer[];
double MajorCycleBuy[];
double MajorCycleSell[];
double MinorCycleBuy[];
double MinorCycleSell[];
double ZL1[];

double CyclePrice = 0.0, Strength =0.0, SweepA = 0.0, SweepB = 0.0;
int Switch = 0, Switch2 = 0,	SwitchA = 0, SwitchB = 0, SwitchC = 0, SwitchD = 0, SwitchE = 0, SwitchAA = 0, SwitchBB = 0;
double Price1BuyA = 0.0, Price2BuyA = 0.0;
int Price1BuyB = 1.0, Price2BuyB = 1.0;
double Price1SellA = 0.0, Price2SellA = 0.0;
int Price1SellB = 0.0, Price2SellB = 0.0;
bool ActiveSwitch = True, BuySwitchA = FALSE, BuySwitchB = FALSE, SellSwitchA = FALSE, SellSwitchB = FALSE;
int BuySellFac = 01;
bool Condition1, Condition2, Condition3, Condition6;

int init()  {
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(0,LineBuffer);

   SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,3);
   SetIndexBuffer(1,MajorCycleBuy);

   SetIndexStyle(2,DRAW_HISTOGRAM,STYLE_SOLID,3);
   SetIndexBuffer(2,MajorCycleSell);

   SetIndexStyle(3,DRAW_HISTOGRAM,STYLE_SOLID,1);
   SetIndexBuffer(3,MinorCycleBuy);

   SetIndexStyle(4,DRAW_HISTOGRAM,STYLE_SOLID,1);
   SetIndexBuffer(4,MinorCycleSell);

   SetIndexStyle(5,DRAW_NONE);
   SetIndexBuffer(5,ZL1);

   SetIndexEmptyValue(1,0.0);
   SetIndexEmptyValue(2,0.0);
   SetIndexEmptyValue(3,0.0);
   SetIndexEmptyValue(4,0.0);
   SetIndexEmptyValue(5,0.0);
   return(0);
}

int deinit() {return(0);}

int start() {
   int counted_bars=IndicatorCounted();
   if(counted_bars<0) return(-1);
  // if(counted_bars>0) counted_bars--;
  // int position=Bars-1;
   int position=Bars-counted_bars;
   if (position<0) position=0;

   int rnglength = 250;
   double range = 0.0, srange = 0.0;
   for (int pos = position; pos >=0; pos--)
   {
      srange = 0.0;
      int j = 0;
      for (int i=0;i<rnglength;i++)
      {
         j++;
         int posr = pos + i;
         if (posr >= Bars)
            break;

         srange = srange + (High[posr] - Low[posr]);
      }
      range = srange / j * Length;
      int BarNumber = Bars-pos; //??????????
      if (BarNumber < 0)
            BarNumber = 0;

      CyclePrice = iMA(NULL, 0, PriceActionFilter, 0, MODE_LWMA, PRICE_WEIGHTED, pos);

      if (UseFilterSMAorRSI == 1)
            ZL1[pos] = ZeroLag(CyclePrice,FilterStrengthSMA, pos);
      if (UseFilterSMAorRSI == 2)
            ZL1[pos] = ZeroLag( iRSI(NULL, 0, 4, CyclePrice, FilterStrengthRSI ), FilterStrengthRSI, pos);

      if (ZL1[pos] > ZL1[pos+1])
          SwitchC = 1;
      if (ZL1[pos] < ZL1[pos+1])
          SwitchC = 2;

      if (BarNumber <= 1)
      {
         if (Strength == 0)
     		  SweepA  = range;
     		else
     		  SweepA = Strength;
         Price1BuyA  = CyclePrice;
         Price1SellA  = CyclePrice;
      }

      /* ***************************************************************** */

      if (BarNumber > 1)
      {
         if (Switch > -1)
         {
            if (CyclePrice < Price1BuyA)
            {

                  if (UseCycleFilter && (SwitchC == 2) && BuySwitchA )
                  {
			           MinorCycleBuy[pos + BarNumber - Price1BuyB] = 0; //MinorBuySell
			           LineBuffer[pos + BarNumber - Price1BuyB ] = 0; //line
		            }

		            if (!UseCycleFilter && BuySwitchA)
		            {
			           MinorCycleBuy[pos +BarNumber - Price1BuyB] = 0;
			           LineBuffer[pos +BarNumber - Price1BuyB] = 0;
		            }
		            Price1BuyA = CyclePrice;
                  Price1BuyB = BarNumber;
                  BuySwitchA = TRUE;
            }
            else if (CyclePrice > Price1BuyA)
            {

   			      SwitchA = BarNumber - Price1BuyB;

		            if (!UseCycleFilter)
		            {
			           MinorCycleBuy[pos +SwitchA] = -1;//MinorBuySell - DarkGreen
			           LineBuffer[pos +SwitchA] = -1;//line
		            }

		            if (UseCycleFilter && SwitchC  == 1)
		            {
			           MinorCycleBuy[pos +SwitchA] = -1;  //MinorBuySell
			           LineBuffer[pos +SwitchA] = -1; //line
			           SwitchD = 1;
		            }
		            else
		            {
			           SwitchD = 0;
			         }

                  BuySwitchA = TRUE;

		            double cyclePrice1 = iMA(NULL, 0, PriceActionFilter, 0, MODE_LWMA, PRICE_WEIGHTED, pos + SwitchA);
                  if (ActiveSwitch)
                  {
                        Condition1 = CyclePrice - cyclePrice1 >= SweepA;
                  }
                  else
                  {
                        Condition1 = CyclePrice >= cyclePrice1 * (1 + SweepA / 1000);
                  }
                  if (Condition1 && SwitchA >= BuySellFac)
                  {
                        Switch =  - 1;
                        Price1SellA = CyclePrice;
                        Price1SellB = BarNumber;
                        SellSwitchA = FALSE;
                        BuySwitchA = FALSE;
                  }
            }
         }
         if(Switch < 1)
         {
            if (CyclePrice > Price1SellA)
            {
               if (UseCycleFilter && SwitchC == 1 && SellSwitchA )
               {
				     MinorCycleSell[pos +BarNumber - Price1SellB] = 0; //MinorBuySell
				     LineBuffer[pos +BarNumber - Price1SellB ] = 0; //line
			      }
			      if (!UseCycleFilter && SellSwitchA )
			      {
                   MinorCycleSell[pos +BarNumber - Price1SellB] = 0;//MinorBuySell
                   LineBuffer[pos +BarNumber - Price1SellB] = 0;//line
               }
               Price1SellA = CyclePrice;
               Price1SellB = BarNumber;
               SellSwitchA = TRUE;
		       }
		       else if (CyclePrice < Price1SellA)
		       {
			      SwitchA = BarNumber - Price1SellB;
               if (!UseCycleFilter)
               {
                  MinorCycleSell[pos +SwitchA] = 1; // MinorBuySell darkRed
                  LineBuffer[pos +SwitchA] = 1; //"CycleLine"
			      }
      			if (UseCycleFilter && (SwitchC == 2))
      			{
				     MinorCycleSell[pos +SwitchA] = 1;//MinorBuySell darkRed
				     LineBuffer[pos +SwitchA] = 1;//CycleLine
				     SwitchD  = 2;
			      }
			      else
			         SwitchD  = 0;

               SellSwitchA = TRUE;
			      double cyclePrice2 = iMA(NULL, 0, PriceActionFilter, 0, MODE_LWMA, PRICE_WEIGHTED, pos + SwitchA);

			      if (ActiveSwitch)
				     Condition1 = (cyclePrice2 - CyclePrice) >= SweepA;
			      else
				     Condition1 = CyclePrice <= (cyclePrice2 * (1 - SweepA / 1000));

			      if (Condition1 && SwitchA >= BuySellFac)
			      {
				      Switch = 1;
                  Price1BuyA = CyclePrice;
                  Price1BuyB = BarNumber;
                  SellSwitchA = FALSE;
                  BuySwitchA = FALSE;
               }
            }
         }
      }

      LineBuffer[pos] = 0;
      MinorCycleBuy[pos] = 0;
      MinorCycleSell[pos] = 0;

      if (BarNumber == 1)
      {
         if (Strength == 0)
            SweepB  = range *  MajorCycleStrength;
         else
            SweepB = Strength * MajorCycleStrength;

         Price2BuyA = CyclePrice;
         Price2SellA = CyclePrice;
      }

      if (BarNumber > 1)
      {
         if (Switch2  >  - 1)
         {
            if (CyclePrice < Price2BuyA)
            {
               if (UseCycleFilter && SwitchC == 2 && BuySwitchB )
				   {
				      MajorCycleBuy [pos +BarNumber - Price2BuyB] = 0; //MajorBuySell,green
		//		      LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line -----
               }
               if (!UseCycleFilter && BuySwitchB )
               {
                  MajorCycleBuy [pos +BarNumber - Price2BuyB] = 0;//MajorBuySell,green
  	//			      LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line-----------
               }
			      Price2BuyA = CyclePrice;
               Price2BuyB = BarNumber;
               BuySwitchB = TRUE;
            }
            else if (CyclePrice > Price2BuyA)
            {
			      SwitchB = BarNumber - Price2BuyB;

               if (!UseCycleFilter)
               {
                     MajorCycleBuy [pos +SwitchB] = -1; //MajorBuySell green
      //               LineBuffer[pos + SwitchB] = -1; //line--------------
               }
               if (UseCycleFilter && SwitchC  == 1)
               {
                  MajorCycleBuy [pos +SwitchB] = -1; //MajorBuySell green
     //             LineBuffer[pos + SwitchB] = -1; //line-----------------
                  SwitchE  = 1;
               }
               else
				     SwitchE  = 0;

               BuySwitchB = TRUE;
			      double cyclePrice3 = iMA(NULL, 0, PriceActionFilter, 0, MODE_LWMA, PRICE_WEIGHTED, pos + SwitchB);
               if (ActiveSwitch)
                  Condition6 = CyclePrice - cyclePrice3 >= SweepB;
               else
                  Condition6 = CyclePrice >= cyclePrice3 * (1 + SweepB / 1000);

			      if (Condition6 && SwitchB >= BuySellFac)
			      {
                     Switch2 =  - 1;
                     Price2SellA = CyclePrice;
                     Price2SellB = BarNumber;
                     SellSwitchB = FALSE;
                     BuySwitchB = FALSE;
               }
            }
         }

         if (Switch2  < 1)
         {
            if (CyclePrice  > Price2SellA )
            {
			      if (UseCycleFilter && SwitchC  == 1 && SellSwitchB )
				   {
				         MajorCycleSell [pos +BarNumber - Price2SellB] = 0; //"MajorBuySell",red
		//			      LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
			     }
			      if (!UseCycleFilter && SellSwitchB )
				   {
				       MajorCycleSell [pos +BarNumber - Price2SellB] = 0;//"MajorBuySell",red
     //              LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
               }
			      Price2SellA = CyclePrice;
               Price2SellB = BarNumber;
               SellSwitchB = TRUE;
		       }
		       else if (CyclePrice < Price2SellA)
		       {
               SwitchB = BarNumber - Price2SellB ;

      			if (!UseCycleFilter)
      			{
      			   MajorCycleSell[pos + SwitchB] = 1; //"MajorBuySell",red
     // 		      LineBuffer[pos + SwitchB ] = 1; //line -----
			      }
		         if (UseCycleFilter && SwitchC  == 2)
		         {
      				MajorCycleSell [pos + SwitchB] = 1; //"MajorBuySell",red
      //		      LineBuffer[pos + SwitchB ] = 1; //line -----
		       		SwitchE  = 2;
			      }
			      else
				     SwitchE  = 0;

               SellSwitchB = TRUE;
	            double cyclePrice4 = iMA(NULL, 0, PriceActionFilter, 0, MODE_LWMA, PRICE_WEIGHTED, pos + SwitchB);
			      if (ActiveSwitch)
                  Condition6 = cyclePrice4 - CyclePrice >= SweepB;
			      else
                  Condition6 = CyclePrice <= cyclePrice4 * (1.0 - SweepB / 1000.0);

			      if (Condition6 && SwitchB >= BuySellFac)
			      {
				        Switch2 = 1;
                     Price2BuyA = CyclePrice;
                     Price2BuyB = BarNumber;
                     SellSwitchB = FALSE;
                     BuySwitchB = FALSE;
               }
            }
         }
      }
      LineBuffer[pos] = 0;
      MajorCycleSell[pos] = 0;
      MajorCycleBuy[pos] = 0;
   }
   return(0);
}

double ZeroLag(double price, int length, int pos)
{
   if (length < 3)
   {
      return(price);
   }
   double aa = MathExp(-1.414*3.14159 / length);
   double bb = 2*aa*MathCos(1.414*180 / length);
   double CB = bb;
   double CC = -aa*aa;
   double CA = 1 - CB - CC;
   double CD = CA*price + CB*ZL1[pos+1] + CC*ZL1[pos+2];
   return(CD);
}
