EJ_Pivot_DWM_v1

This script is designed to automatically calculate and display various technical analysis levels on a trading chart. It specifically focuses on identifying "Pivot Points," which are used by traders to predict potential support (price floors) and resistance (price ceilings) based on historical price action.

Here is a breakdown of the logic used by the script:

Core Functionality

The tool works by looking at historical price data—specifically the high, low, and closing prices from previous periods. Depending on your settings, it identifies these levels to help you visualize where the market might struggle to move upward or downward.

Key Features and Calculations

1. Standard Pivot Points The script calculates several classic pivot levels:

  • Main Pivot (P): The central balance point calculated from the previous period's high, low, and close.
  • Resistance Levels (R1, R2, R3): These represent potential areas where price may face selling pressure.
  • Support Levels (S1, S2, S3): These represent potential areas where price may find buying interest.

2. Camarilla Levels When enabled, the script calculates "Camarilla" levels. These are a specific type of pivot calculation often used by day traders to identify breakout points and reversal zones within a single trading session. It includes specific high (H3, H4) and low (L3, L4) markers.

3. Midpoint Pivots The script can also calculate intermediate "Midpoints" (M0 through M5). These act as smaller sub-levels between the main resistance and support lines, allowing for more granular analysis of price movement within a specific range.

Visual Elements and User Experience

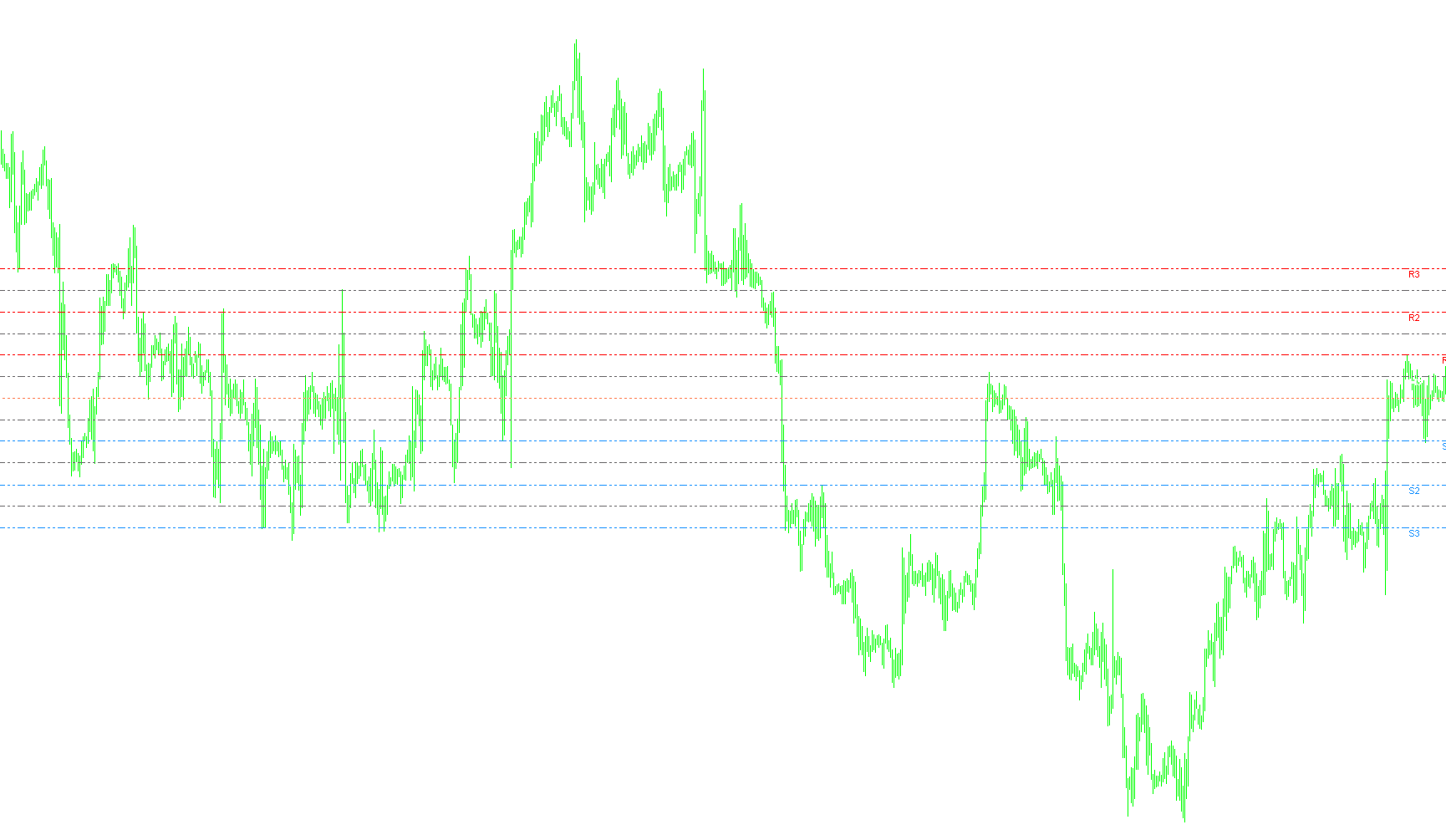

  • Automatic Drawing: The script automatically draws horizontal lines across your chart at these calculated prices. It also places text labels (like "R1", "S1", "P") so you can easily identify what each line represents.
  • Dynamic Updating: As new price data arrives, the script updates these levels to reflect the most recent information.
  • Information Overlay: The script provides a small text summary on the chart showing the current high, low, and range of the previous day, giving you a quick reference for the market's volatility.
  • Timeframe Control: You can specify which timeframe the script should pull data from (e.g., Daily, Hourly, etc.), allowing you to see different types of structural levels on the same chart.

Operational Constraints

To ensure accuracy, the script includes a check to make sure it is not used on timeframes larger than a week. If the timeframe is too broad, the script will provide an error message to prevent misleading calculations.

Miscellaneous
Implements a curve of type %1
10 Views
0 Downloads
0 Favorites
EJ_Pivot_DWM_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+-------------------------------------------------------------------+
//|                                                         Pivot.mq4 |
//|                       Copyright © 2004, MetaQuotes Software Corp. |
//|                                         http://www.metaquotes.net |
//|                                     Modified by Alejandro Galindo |
//|                                                                   |
//|                                            You are free to use it |
//|                                                                   |
//|      If you want, and if this work/modification is helpful to you |
//|                      send me a PayPal donation to ag@elcactus.com |
//+-------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net"


#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 EMPTY


extern bool pivots = true;
extern bool camarilla = false;
extern bool midpivots = true;
extern int MyPeriod = PERIOD_D1;
/*+----------------------------------------------------+
 MyPeriod = Period in minutes to consideration, could be:
 1440 for D1
 60 for H1
 240 for H4
 1 for M1
 15 for M15
 30 for M30
 5 for M5
 43200 for MN1
 10080 for W1
 +-------------------------------------------------------*/


double day_high=0;
double day_low=0;
double yesterday_high=0;
double yesterday_open=0;
double yesterday_low=0;
double yesterday_close=0;
double today_open=0;
double today_high=0;
double today_low=0;
double P=0;
double Q=0;
double R1,R2,R3;
double M0,M1,M2,M3,M4,M5;
double S1,S2,S3;
double H4,H3,L4,L3;
double nQ=0;
double nD=0;
double D=0;
double rates_d1[2][6];
double ExtMapBuffer1[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
IndicatorBuffers(4);
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,159);
SetIndexBuffer(0, ExtMapBuffer1);

//---- indicators
R1=0; R2=0; R3=0;
M0=0; M1=0; M2=0; M3=0; M4=0; M5=0;
S1=0; S2=0; S3=0;
H4=0; H3=0; L4=0; L3=0;


//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
ObjectDelete("R1 Label");
ObjectDelete("R1 Line");
ObjectDelete("R2 Label");
ObjectDelete("R2 Line");
ObjectDelete("R3 Label");
ObjectDelete("R3 Line");
ObjectDelete("S1 Label");
ObjectDelete("S1 Line");
ObjectDelete("S2 Label");
ObjectDelete("S2 Line");
ObjectDelete("S3 Label");
ObjectDelete("S3 Line");
ObjectDelete("P Label");
ObjectDelete("P Line");
ObjectDelete("H4 Label");
ObjectDelete("H4 Line");
ObjectDelete("H3 Label");
ObjectDelete("H3 Line");
ObjectDelete("L3 Label");
ObjectDelete("L3 Line");
ObjectDelete("L4 Label");
ObjectDelete("L4 Line");
ObjectDelete("M5 Label");
ObjectDelete("M5 Line");
ObjectDelete("M4 Label");
ObjectDelete("M4 Line");
ObjectDelete("M3 Label");
ObjectDelete("M3 Line");
ObjectDelete("M2 Label");
ObjectDelete("M2 Line");
ObjectDelete("M1 Label");
ObjectDelete("M1 Line");
ObjectDelete("M0 Label");
ObjectDelete("M0 Line");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{

//---- TODO: add your code here

//---- exit if period is greater than daily charts
if(Period() > 10080)
{
Print("Error - Chart period is greater than 1 day.");
return(-1); // then exit
}

//---- Get new daily prices

ArrayCopyRates(rates_d1, Symbol(), MyPeriod);

yesterday_close = rates_d1[1][4];
yesterday_open = rates_d1[1][1];
today_open = rates_d1[0][1];
yesterday_high = rates_d1[1][3];
yesterday_low = rates_d1[1][2];
day_high = rates_d1[0][3];
day_low = rates_d1[0][2];


//---- Calculate Pivots

D = (day_high - day_low);
Q = (yesterday_high - yesterday_low);
P = (yesterday_high + yesterday_low + yesterday_close) / 3;
R1 = (2*P)-yesterday_low;
S1 = (2*P)-yesterday_high;
R2 = P+(yesterday_high - yesterday_low);
S2 = P-(yesterday_high - yesterday_low);

H4 = (Q*0.55)+yesterday_close;
H3 = (Q*0.27)+yesterday_close;
R3 = (2*P)+(yesterday_high-(2*yesterday_low));
M5 = (R2+R3)/2;
// R2 = P-S1+R1;
M4 = (R1+R2)/2;
// R1 = (2*P)-yesterday_low;
M3 = (P+R1)/2;
// P = (yesterday_high + yesterday_low + yesterday_close)/3;
M2 = (P+S1)/2;
// S1 = (2*P)-yesterday_high;
M1 = (S1+S2)/2;
// S2 = P-R1+S1;
S3 = (2*P)-((2* yesterday_high)-yesterday_low);
L3 = yesterday_close-(Q*0.27);
L4 = yesterday_close-(Q*0.55);
M0 = (S2+S3)/2;

if (Q > 5)
{
nQ = Q;
}
else
{
nQ = Q*10000;
}

if (D > 5)
{
nD = D;
}
else
{
nD = D*10000;
}


Comment("High= ",yesterday_high," Previous DaysRange= ",nQ,"\nLow= ",yesterday_low," Current DaysRange= ",nD,"\nClose= ",yesterday_close);

//---- Set line labels on chart window

//---- Pivot Lines
if (pivots==true)
{
if(ObjectFind("R1 label") != 0)
{
ObjectCreate("R1 label", OBJ_TEXT, 0, Time[0], R1);
ObjectSetText("R1 label", " R1", 8, "Arial", Red);
}
else
{
ObjectMove("R1 label", 0, Time[0], R1);
}

if(ObjectFind("R2 label") != 0)
{
ObjectCreate("R2 label", OBJ_TEXT, 0, Time[20], R2);
ObjectSetText("R2 label", " R2", 8, "Arial", Red);
}
else
{
ObjectMove("R2 label", 0, Time[20], R2);
}

if(ObjectFind("R3 label") != 0)
{
ObjectCreate("R3 label", OBJ_TEXT, 0, Time[20], R3);
ObjectSetText("R3 label", " R3", 8, "Arial", Red);
}
else
{
ObjectMove("R3 label", 0, Time[20], R3);
}

if(ObjectFind("P label") != 0)
{
ObjectCreate("P label", OBJ_TEXT, 0, Time[0], P);
ObjectSetText("P label", "                         Pivot  " +DoubleToStr(P,4), 10, "Arial",
Coral);
}
else
{
ObjectMove("P label", 0, Time[0], P);
}

if(ObjectFind("S1 label") != 0)
{
ObjectCreate("S1 label", OBJ_TEXT, 0, Time[0], S1);
ObjectSetText("S1 label", " S1", 8, "Arial", DodgerBlue);
}
else
{
ObjectMove("S1 label", 0, Time[0], S1);
}

if(ObjectFind("S2 label") != 0)
{
ObjectCreate("S2 label", OBJ_TEXT, 0, Time[20], S2);
ObjectSetText("S2 label", " S2", 8, "Arial", DodgerBlue);
}
else
{
ObjectMove("S2 label", 0, Time[20], S2);
}

if(ObjectFind("S3 label") != 0)
{
ObjectCreate("S3 label", OBJ_TEXT, 0, Time[20], S3);
ObjectSetText("S3 label", " S3", 8, "Arial", DodgerBlue);
}
else
{
ObjectMove("S3 label", 0, Time[20], S3);
}

//--- Draw Pivot lines on chart
if(ObjectFind("S1 line") != 0)
{
ObjectCreate("S1 line", OBJ_HLINE, 0, Time[40], S1);
ObjectSet("S1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S1 line", OBJPROP_COLOR, DodgerBlue);
}
else
{
ObjectMove("S1 line", 0, Time[40], S1);
}

if(ObjectFind("S2 line") != 0)
{
ObjectCreate("S2 line", OBJ_HLINE, 0, Time[40], S2);
ObjectSet("S2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S2 line", OBJPROP_COLOR, DodgerBlue);
}
else
{
ObjectMove("S2 line", 0, Time[40], S2);
}

if(ObjectFind("S3 line") != 0)
{
ObjectCreate("S3 line", OBJ_HLINE, 0, Time[40], S3);
ObjectSet("S3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S3 line", OBJPROP_COLOR, DodgerBlue);
}
else
{
ObjectMove("S3 line", 0, Time[40], S3);
}

if(ObjectFind("P line") != 0)
{
ObjectCreate("P line", OBJ_HLINE, 0, Time[40], P);
ObjectSet("P line", OBJPROP_STYLE, STYLE_DOT);
ObjectSet("P line", OBJPROP_COLOR, Coral);
}
else
{
ObjectMove("P line", 0, Time[40], P);
}

if(ObjectFind("R1 line") != 0)
{
ObjectCreate("R1 line", OBJ_HLINE, 0, Time[40], R1);
ObjectSet("R1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R1 line", OBJPROP_COLOR, Red);
}
else
{
ObjectMove("R1 line", 0, Time[40], R1);
}

if(ObjectFind("R2 line") != 0)
{
ObjectCreate("R2 line", OBJ_HLINE, 0, Time[40], R2);
ObjectSet("R2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R2 line", OBJPROP_COLOR, Red);
}
else
{
ObjectMove("R2 line", 0, Time[40], R2);
}

if(ObjectFind("R3 line") != 0)
{
ObjectCreate("R3 line", OBJ_HLINE, 0, Time[40], R3);
ObjectSet("R3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R3 line", OBJPROP_COLOR, Red);
}
else
{
ObjectMove("R3 line", 0, Time[40], R3);
}
}
//---- End of Pivot Line Draw


//----- Camarilla Lines

if (camarilla==true)
{
if(ObjectFind("H4 label") != 0)
{
ObjectCreate("H4 label", OBJ_TEXT, 0, Time[20], H4);
ObjectSetText("H4 label", " H4", 8, "Arial", EMPTY);
}
else
{
ObjectMove("H4 label", 0, Time[20], H4);
}

if(ObjectFind("H3 label") != 0)
{
ObjectCreate("H3 label", OBJ_TEXT, 0, Time[20], H3);
ObjectSetText("H3 label", " H3", 8, "Arial", EMPTY);
}
else
{
ObjectMove("H3 label", 0, Time[20], H3);
}

if(ObjectFind("L3 label") != 0)
{
ObjectCreate("L3 label", OBJ_TEXT, 0, Time[20], L3);
ObjectSetText("L3 label", " L3", 8, "Arial", EMPTY);
}
else
{
ObjectMove("L3 label", 0, Time[20], L3);
}

if(ObjectFind("L4 label") != 0)
{
ObjectCreate("L4 label", OBJ_TEXT, 0, Time[20], L4);
ObjectSetText("L4 label", " L4", 8, "Arial", EMPTY);
}
else
{
ObjectMove("L4 label", 0, Time[20], L4);
}

//---- Draw Camarilla lines on Chart
if(ObjectFind("H4 line") != 0)
{
ObjectCreate("H4 line", OBJ_HLINE, 0, Time[40], H4);
ObjectSet("H4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("H4 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("H4 line", 0, Time[40], H4);
}

if(ObjectFind("H3 line") != 0)
{
ObjectCreate("H3 line", OBJ_HLINE, 0, Time[40], H3);
ObjectSet("H3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("H3 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("H3 line", 0, Time[40], H3);
}

if(ObjectFind("L3 line") != 0)
{
ObjectCreate("L3 line", OBJ_HLINE, 0, Time[40], L3);
ObjectSet("L3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("L3 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("L3 line", 0, Time[40], L3);
}

if(ObjectFind("L4 line") != 0)
{
ObjectCreate("L4 line", OBJ_HLINE, 0, Time[40], L4);
ObjectSet("L4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("L4 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("L4 line", 0, Time[40], L4);
}
}
//-------End of Draw Camarilla Lines

//------ Midpoints Pivots

if (midpivots==true)
{

if(ObjectFind("M5 label") != 0)
{
ObjectCreate("M5 label", OBJ_TEXT, 0, Time[20], M5);
ObjectSetText("M5 label", "  M5", 8, "Arial", EMPTY);
}
else
{
ObjectMove("M5 label", 0, Time[20], M5);
}

if(ObjectFind("M4 label") != 0)
{
ObjectCreate("M4 label", OBJ_TEXT, 0, Time[20], M4);
ObjectSetText("M4 label", "  M4", 8, "Arial", EMPTY);
}
else
{
ObjectMove("M4 label", 0, Time[20], M4);
}

if(ObjectFind("M3 label") != 0)
{
ObjectCreate("M3 label", OBJ_TEXT, 0, Time[20], M3);
ObjectSetText("M3 label", "  M3", 8, "Arial", EMPTY);
}
else
{
ObjectMove("M3 label", 0, Time[20], M3);
}

if(ObjectFind("M2 label") != 0)
{
ObjectCreate("M2 label", OBJ_TEXT, 0, Time[20], M2);
ObjectSetText("M2 label", " M2", 8, "Arial", EMPTY);
}
else
{
ObjectMove("M2 label", 0, Time[20], M2);
}

if(ObjectFind("M1 label") != 0)
{
ObjectCreate("M1 label", OBJ_TEXT, 0, Time[20], M1);
ObjectSetText("M1 label", " M1", 8, "Arial", EMPTY);
}
else
{
ObjectMove("M1 label", 0, Time[20], M1);
}

if(ObjectFind("M0 label") != 0)
{
ObjectCreate("M0 label", OBJ_TEXT, 0, Time[20], M0);
ObjectSetText("M0 label", "  M0", 8, "Arial", EMPTY);
}
else
{
ObjectMove("M0 label", 0, Time[20], M0);
}

//---- Draw Midpoint Pivots on Chart
if(ObjectFind("M5 line") != 0)
{
ObjectCreate("M5 line", OBJ_HLINE, 0, Time[40], M5);
ObjectSet("M5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M5 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("M5 line", 0, Time[40], M5);
}

if(ObjectFind("M4 line") != 0)
{
ObjectCreate("M4 line", OBJ_HLINE, 0, Time[40], M4);
ObjectSet("M4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M4 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("M4 line", 0, Time[40], M4);
}

if(ObjectFind("M3 line") != 0)
{
ObjectCreate("M3 line", OBJ_HLINE, 0, Time[40], M3);
ObjectSet("M3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M3 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("M3 line", 0, Time[40], M3);
}

if(ObjectFind("M2 line") != 0)
{
ObjectCreate("M2 line", OBJ_HLINE, 0, Time[40], M2);
ObjectSet("M2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M2 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("M2 line", 0, Time[40], M2);
}

if(ObjectFind("M1 line") != 0)
{
ObjectCreate("M1 line", OBJ_HLINE, 0, Time[40], M1);
ObjectSet("M1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M1 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("M1 line", 0, Time[40], M1);
}

if(ObjectFind("M0 line") != 0)
{
ObjectCreate("M0 line", OBJ_HLINE, 0, Time[40], M0);
ObjectSet("M0 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M0 line", OBJPROP_COLOR, DimGray);
}
else
{
ObjectMove("M0 line", 0, Time[40], M0);
}

}
//----End of Midpoint Pivots Draw

//---- End Of Program
return(0);
}
//+------------------------------------------------------------------+

Similar scripts

PivotCustomTime____

This indicator dynamically projects institutional supply and demand zones by calculating standard pivot points, Camarilla levels, and intermediate midpoints based on historical high, low, and closing price data.

Pivot Lines Timezone_001

This indicator dynamically projects standard pivot levels, Camarilla breakouts, and fractional midpoint zones based on historical daily price action and specific time zone offsets.

--PivotCustomTime----

This indicator projects comprehensive horizontal support and resistance levels by synthesizing standard, Camarilla, and midpoint pivot calculations based on historical high, low, and closing prices.

--PivotCustomTime----_001

This indicator synthesizes traditional floor pivots, Camarilla breakout levels, and intermediate midpoint values into a single visual framework for identifying multi-tier support and resistance.

EJ_Pivot_DWM

This indicator dynamically projects traditional pivot levels, Camarilla breach points, and granular midpoints based on historical high, low, and closing price data.

Pivot_Lines

This indicator synthesizes multi-layered support and resistance levels by integrating standard daily pivots, Camarilla break-out points, and fractional midpoint subdivisions.

Pivot_Lines1

This indicator projects standard pivots, Camarilla breakout levels, and intermediate midpoint thresholds using historical high, low, and closing data.

UROVNI-MT4_v2

Pivot_Lines_daily_ex_Sundays

This technical indicator projects comprehensive daily price action levels by synthesizing standard floor pivots, Camarilla breakdown points, and sequential midpoint equilibrium zones.

Pivot Lines Timezone_v3

This indicator synthesizes standard floor pivots, Camarilla breakout levels, and nested midpoint trajectories into a unified visual grid based on historical price ranges.

Pro4x Pivot Lines

Comments
