ma_channel_break_v1_0
Download script
This indicator is designed to assist traders by visually identifying potential entry points, exit levels, and risk management zones based on moving average trends. It simplifies the analysis of price action by translating complex mathematical averages into actionable visual signals on your trading chart.
Core Trading Logic
The tool operates by monitoring two primary Exponential Moving Averages (EMA)—a "Faster" one and a "Slower" one—while simultaneously tracking the high and low price boundaries of the market. Here is how the logic breaks down:
1. Entry Signals (Buy and Sell) The script looks for specific "crossover" moments where the price breaks through moving average thresholds.
- Long Opportunities (Buy): The tool identifies a potential upward move when the faster average is positioned above the slower average, and the current candle's price moves from below to above the upper boundary of the faster average. It also checks if the price breaks the upper boundary of the slower average as a secondary confirmation. When these conditions align, a visual arrow appears on your chart.
- Short Opportunities (Sell): Conversely, it looks for downward momentum. This is triggered when the faster average is below the slower average and the price drops from above to below the lower boundary of the faster average (or the slower one). A corresponding visual arrow marks these moments.
2. Dynamic Exit Zones To help manage profit, the script calculates "Exit Lines." Rather than using a static number, it looks back over a specific period (defined by the Exit Period) to find the highest highs and lowest lows.
- It maps out these extremes as horizontal levels on your chart, suggesting areas where price momentum might exhaust and where it might be wise to take profits.
3. Risk Management (Stop Loss) To protect your capital, the script automatically calculates "Stop" levels. It uses a dedicated moving average based on the highest highs and lowest lows of recent price action. This creates a dynamic safety net that adjusts with the market volatility, helping you define where to exit a trade if the market moves against your position.

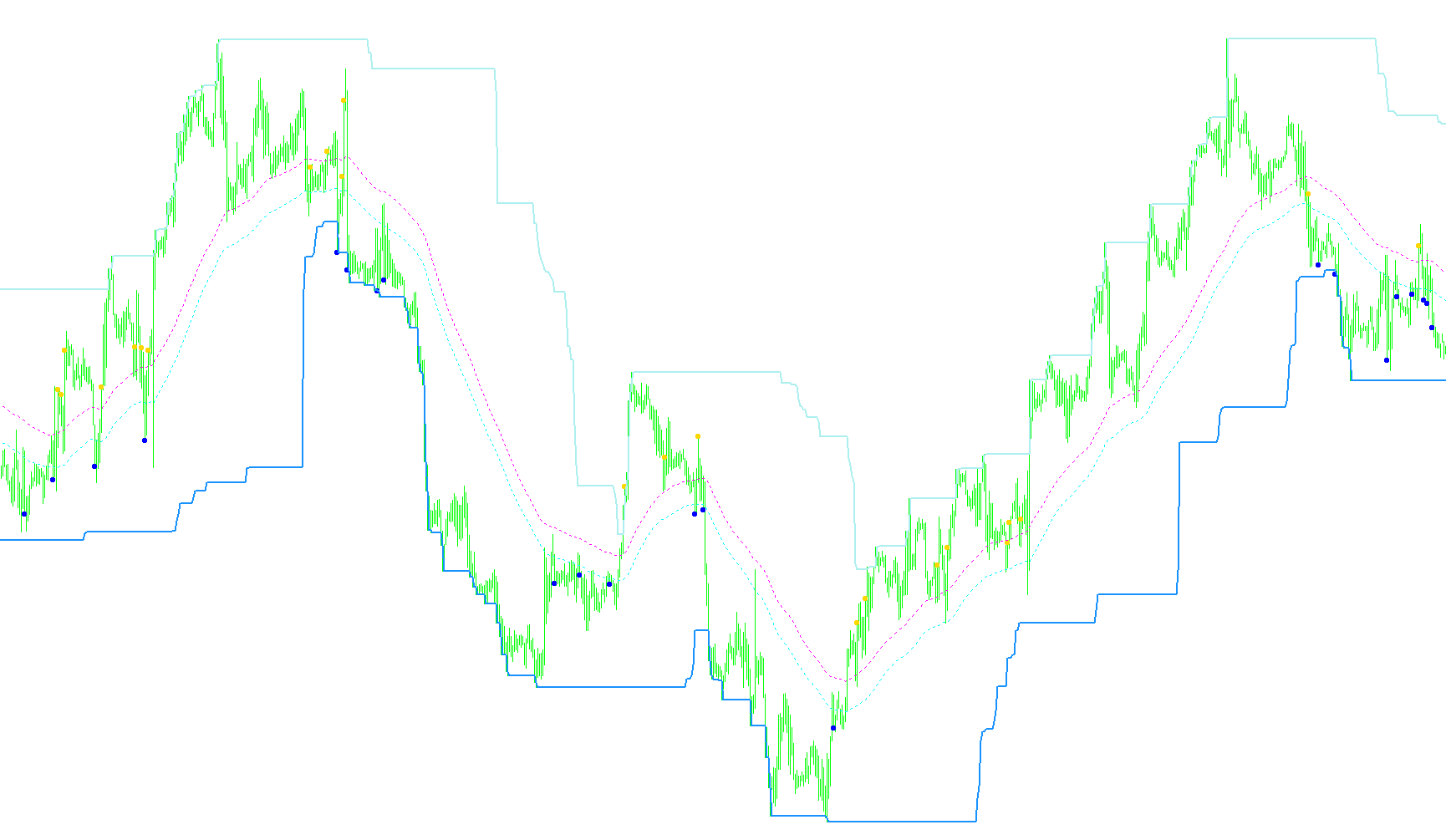

Summary of Visual Elements
- Arrows: Highlight immediate areas of interest for entering a trade (Long or Short).
- Exit Lines: Provide visual targets for closing a winning trade based on recent price extremes.
- Stop Lines: Provide a baseline for risk management, showing where a trend may have fundamentally broken.
//+------------------------------------------------------------------+
//| |
//| Copyright © 2005,giulio |
//| |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, Giulio "
#property indicator_chart_window
#property indicator_buffers 6
#property indicator_color1 White
#property indicator_color2 Red
#property indicator_color3 White
#property indicator_color4 Red
#property indicator_color5 White
#property indicator_color6 Red
#property indicator_style5 STYLE_DOT
#property indicator_style6 STYLE_DOT
double CrossUp[];
double CrossDown[];
extern int FasterEMA = 89; //Faster EMA Channel
extern int SlowerEMA = 144; //Slower EMA Channel
extern int EXIT_Period=89; //Exit Period Channel
double highexit[];
double lowexit[];
extern int Stop_loss=89; //Stop Loss Channel
double highstop[];
double lowstop[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0,DRAW_ARROW,0,2);
SetIndexArrow(0,159);
SetIndexBuffer(0,CrossUp);
SetIndexStyle(1,DRAW_ARROW,0,2);
SetIndexArrow(1,159);
SetIndexBuffer(1,CrossDown);
SetIndexStyle(2,DRAW_LINE,0,2);
SetIndexStyle(3,DRAW_LINE,0,2);
SetIndexBuffer(2,highexit);
SetIndexBuffer(3,lowexit);
SetIndexStyle(4,DRAW_LINE,2,0);
SetIndexStyle(5,DRAW_LINE,2,0);
SetIndexBuffer(4,highstop);
SetIndexBuffer(5,lowstop);
SetIndexStyle(6,DRAW_LINE,2,0);
SetIndexLabel(0,"ENTRY LONG");
SetIndexLabel(1,"ENTRY SHORT");
SetIndexLabel(2,"LONG EXIT LINE");
SetIndexLabel(3,"SHORT EXIT LINE");
SetIndexLabel(4,"LONG STOPLOSS");
SetIndexLabel(5,"SHORT STOP");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int limit,i;
double fasterEMA,slowerEMA,fasterEMAhigh,fasterEMAlow,slowerEMAlow,slowerEMAhigh,close,open;
int counted_bars=IndicatorCounted();
//---- check for possible errors
if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
for(i=0; i<=limit; i++)
{
fasterEMA = iMA(NULL, 0, FasterEMA, 0, MODE_EMA, PRICE_CLOSE, i+0);
slowerEMA = iMA(NULL, 0, SlowerEMA, 0, MODE_EMA, PRICE_CLOSE, i+0);
fasterEMAhigh= iMA(NULL,0,FasterEMA,0,MODE_EMA,PRICE_HIGH,i+0);
fasterEMAlow = iMA(NULL, 0, FasterEMA, 0, MODE_EMA, PRICE_LOW, i+0);
slowerEMAlow = iMA(NULL, 0, SlowerEMA, 0, MODE_EMA, PRICE_LOW, i+0);
slowerEMAhigh= iMA(NULL,0,SlowerEMA,0,MODE_EMA,PRICE_HIGH,i+0);
close= iClose(NULL,0,i+0);
open = iOpen(NULL,0,i+0);
highexit[i]= iHigh(Symbol(),Period(),iHighest(Symbol(),Period(),MODE_HIGH,EXIT_Period,i+1));
lowexit[i] = iLow(Symbol(),Period(),iLowest(Symbol(),Period(),MODE_LOW,EXIT_Period,i+1));
highstop[i]= iMA(NULL,0,Stop_loss,0,MODE_EMA,PRICE_LOW,i+0);
lowstop[i] = iMA(NULL,0,Stop_loss,0,MODE_EMA,PRICE_HIGH,i+0);
if(
(((slowerEMA<fasterEMA) && (open<fasterEMAhigh) && (close>fasterEMAhigh)) || (open<slowerEMAhigh && close>slowerEMAhigh))
)
{ CrossUp[i+0]=High[i+0]; }
else if(
(((slowerEMA>fasterEMA) && (open>fasterEMAlow) && (close<fasterEMAlow)) || (open>slowerEMAlow && close<slowerEMAlow))
)
{ CrossDown[i+0]=Low[i+0]; }
}
return(0);
}
//+------------------------------------------------------------------+
