Author: Spiggy
JMA_RSI

This indicator is designed to provide a smoothed, responsive view of market momentum by combining two specific mathematical concepts: the Relative Strength Index (RSI) and the Jurik Moving Average (JMA).

Instead of simply displaying standard price data, this script processes the "strength" of price movement to create a more refined visual output. Here is the breakdown of how the logic functions:

1. Data Foundation (The RSI Component)

The first step the script takes is calculating the Relative Strength Index (RSI). This is a standard momentum oscillator that measures the speed and change of price movements. By using the RSI as the base data instead of raw price, the indicator filters out "market noise"—the minor, insignificant fluctuations in price—and focuses on the underlying trend of the momentum.

2. The Core Engine (The JMA Component)

Once the RSI values are gathered, they are passed through a Jurik Moving Average (JMA) logic. The JMA is a sophisticated mathematical formula known for two main characteristics:

  • Reduced Lag: Most moving averages "trail" behind the price, causing a delay in signals. The JMA is specifically engineered to minimize this delay.
  • Smoothness: While many fast indicators are "jittery" or jump around erratically, the JMA maintains a smooth curve, making it easier for a human observer to identify the true direction of the trend.

3. Dynamic Adaptation

The script doesn't apply a static smoothing rule. It uses a series of complex calculations—including logarithmic scales and power functions—to adapt how it handles different market conditions:

  • Dynamic Weighting: The logic evaluates the relationship between recent price changes and historical data to decide how much weight to give to the current "pulse" of the market versus previous trends.
  • Cycle Processing: It organizes the data into cycles, allowing it to distinguish between a temporary spike in momentum and a sustained shift in trend direction.

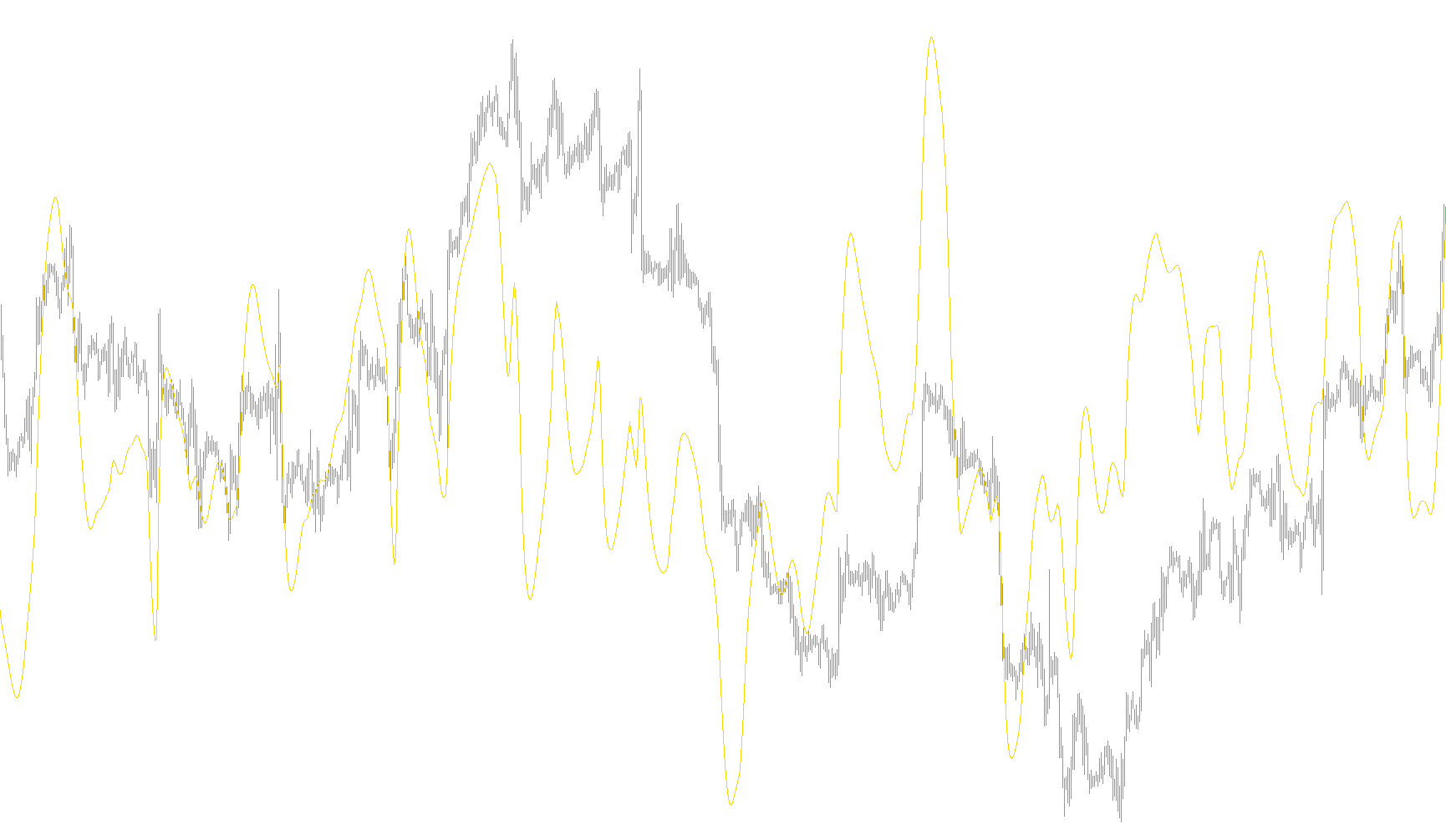

4. Visual Output

The final result (labeled as JMA) is plotted in a separate window on your chart. Because it is based on an RSI-JMA hybrid:

  • It identifies overbought/oversold conditions more cleanly than a standard RSI.
  • It highlights turning points in momentum with less "fake-out" signals compared to traditional moving averages.
  • The red line provides a fluid representation of the market's "heartbeat," helping traders see where momentum is accelerating, decelerating, or reversing.

Summary for the User

Think of this indicator as a "High-Definition Trend Filter." It takes the raw energy of price movement (RSI), strips away the static and noise, and uses advanced calculus (JMA) to project a smooth, real-time path of that energy. It is designed for users who want to see the "true" direction of momentum without the typical delays or erratic jumps found in standard charting tools.

Indicators Used
Relative strength index
Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
JMA_RSI
//+------------------------------------------------------------------+
//|                                                      JMA_RSI.mq4 |
//|                      Copyright © 2008, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Spiggy"
#property link      ""
//----
#property indicator_separate_window
#property indicator_buffers 1
#property indicator_color1 Red
#property indicator_color2    Red
#property indicator_level1 70
#property indicator_level2 30
#property indicator_level3 50
#property indicator_maximum 100
#property indicator_minimum 0

//---- input parameters
extern int       RSIPeriod =  10;
extern int       Len=14;
extern int       phase=-5;
extern int       BarCount=1000;

//---- buffers
double ExtMapBuffer1[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0,DRAW_LINE);
   SetIndexBuffer(0,ExtMapBuffer1);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int    counted_bars=IndicatorCounted();
//----
   // variable definitions
   bool firstTime=True;
   int AccountedBars=0;
   int jj=0;
   int ii=0;
   int shift=0;
   double series=0;
//----
   double vv=0;
   double v1=0;
   double v2=0;
   double v3=0;
   double v4=0;
   double s8=0;
   double s10=0;
   double s18=0;
   double s20=0;
   int v5=0;
   int v6=0;
   double s28=0;
   double s30=0;
   int s38=0;
   int s40=0;
   int s48=0;
   int s50=0;
   int s58=0;
   int s60=0;
   double s68=0;
   double s70=0;
   double f8=0;
   double f10=0;
   double f18=0;
   double f20=0;
   double f28=0;
   double f30=0;
   double f38=0;
   double f40=0;
   double f48=0;
   double f50=0;
   double f58=0;
   double f60=0;
   double f68=0;
   double f70=0;
   double f78=0;
   double f80=0;
   double f88=0;
   double f90=0;
   double f98=0;
   double fA0=0;
   double fA8=0;
   double fB0=0;
   double fB8=0;
   double fC0=0;
   double fC8=0;
   double fD0=0;
   double f0=0;
   double fD8=0;
   double fE0=0;
   double fE8=0;
   int fF0=0;
   double fF8=0;
   int value2=0;
   double JMA=0;

//----
   double list[127];
   double ring1[127];
   double ring2[10];
   double buffer[61];
//----
   ArrayInitialize(list,0);
   ArrayInitialize(ring1,0);
   ArrayInitialize(ring2,0);
   ArrayInitialize(buffer,0);
//----
   if (firstTime)
     {
      AccountedBars=Bars-BarCount;
      firstTime=False;
     }

   //SetLoopCount(0);
     {
      s28=63;
      s30=64;
      for( ii=1;ii<=s28;ii++)
        {
         list[ii]=-1000000;
        }
      for( ii=s30;ii<=127 ;ii++ )
        {
         list[ii]=1000000;
        }
      f0=1;
     }
//----
   for( shift=BarCount;shift>=0;shift-- )
     {
      series=iRSI(NULL,0,RSIPeriod,PRICE_CLOSE,shift);
      if (fF0 < 61)
        {
         fF0= fF0 + 1;
         buffer[fF0]=series;
        } //{ main cycle }
      if (fF0 > 30)
        {
         if (Len < 1.0000000002)
           {
            f80=0.0000000001; //{1.0e-10}
           }
         else
           {
            f80=(Len - 1)/2.0;
           }
         if (phase < -100)
           {
            f10=0.5;
           }
         else
           {
            if (phase > 100)
              {
               f10=2.5;
              }
            else
              {
               f10=phase/100 + 1.5;
              }
           }
         v1=MathLog(MathSqrt(f80));
         v2=v1;
         if (v1/MathLog(2.0) + 2.0 < 0.0)
           {
            v3=0;
           }
         else
           {
            v3=v2/MathLog(2.0) + 2.0;
           }
         f98=v3;
//----
         if (0.5<=f98 - 2.0)
           {
            f88=f98 - 2.0;
           }
         else
           {
            f88=0.5;
           }
         f78=MathSqrt(f80) * f98;
         f90=f78/(f78 + 1.0);
         f80=f80 * 0.9;
         f50=f80/(f80 + 2.0);
//----
         if (f0!=0)
           {
            f0=0;
            v5=0;
            for( ii=1;ii <=29;ii++)
              {
               if (buffer[ii+1]!=buffer[ii])
                 {
                  v5=1.0;
                 }
              }
            fD8=v5*30.0;
            if (fD8==0)
              {
               f38=series;
              }
            else
              {
               f38=buffer[1];
              }
            f18=f38;
            if (fD8 > 29)
               fD8=29;
           }
         else
            fD8=0;
//----
         for( ii=fD8;ii>=0;ii-- )
           { //{ another bigcycle...}
            value2=31-ii;
            if (ii==0)
              {
               f8=series;
              }
            else
              {
               f8=buffer[value2];
              }
            f28=f8 - f18;
            f48=f8 - f38;
            if (MathAbs(f28) > MathAbs(f48))
              {
               v2=MathAbs(f28);
              }
            else
              {
               v2=MathAbs(f48);
              }
            fA0=v2;
            vv=fA0 + 0.0000000001; //{1.0e-10;}
//----
            if (s48<=1)
              {
               s48=127;
              }
            else
              {
               s48=s48 - 1;
              }
            if (s50<=1)
              {
               s50=10;
              }
            else
              {
               s50=s50 - 1;
              }
            if (s70 < 128)
               s70=s70 + 1;
            s8=s8 + vv - ring2[s50];
            ring2[s50]=vv;
            if (s70 > 10)
              {
               s20=s8/10;
              }
            else
               s20=s8/s70;
//----
            if (s70 > 127)
              {
               s10=ring1[s48];
               ring1[s48]=s20;
               s68=64;
               s58=s68;
               while(s68 > 1)
                 {
                  if (list[s58] < s10)
                    {
                     s68=s68 *0.5;
                     s58=s58 + s68;
                    }
                  else
                     if (list[s58]<=s10)
                       {
                        s68=1;
                       }
                     else
                       {
                        s68=s68 *0.5;
                        s58=s58 - s68;
                       }
                 }
              }
            else
              {
               ring1[s48]=s20;
               if (s28 + s30 > 127)
                 {
                  s30=s30 - 1;
                  s58=s30;
                 }
               else
                 {
                  s28=s28 + 1;
                  s58=s28;
                 }
               if (s28 > 96)
                 {
                  s38=96;
                 }
               else
                  s38=s28;
               if (s30 < 32)
                 {
                  s40=32;
                 }
               else
                  s40=s30;
              }
//----
            s68=64;
            s60=s68;
            while(s68 > 1)
              {
               if (list[s60]>=s20)
                 {
                  if (list[s60 - 1]<=s20)
                    {
                     s68=1;
                    }
                  else
                    {
                     s68=s68 *0.5;
                     s60=s60 - s68;
                    }
                 }
               else
                 {
                  s68=s68 *0.5;
                  s60=s60 + s68;
                 }
               if ((s60==127) && (s20 > list[127]))
                  s60=128;
              }

            if (s70 > 127)
              {
               if (s58>=s60)
                 {
                  if ((s38 + 1 > s60) && (s40 - 1 < s60))
                    {
                     s18=s18 + s20;
                    }
                  else
                     if ((s40 > s60) && (s40 - 1 < s58))
                        s18=s18 + list[s40 - 1];
                 }
               else
                  if (s40>=s60)
                    {
                     if ((s38 + 1 < s60) && (s38 + 1 > s58))
                        s18=s18 + list[s38 + 1];
                    }
                  else
                     if (s38 + 2 > s60)
                       {
                        s18=s18 + s20;
                       }
                     else
                        if ((s38 + 1 < s60) && (s38 + 1 > s58))
                           s18=s18 + list[s38 + 1];

               if (s58 > s60)
                 {
                  if ((s40 - 1 < s58) && (s38 + 1 > s58))
                    {
                     s18=s18 - list[s58];
                    }
                  else
                     if ((s38 < s58) && (s38 + 1 > s60))
                        s18=s18 - list[s38];
                 }
               else
                 {
                  if ((s38 + 1 > s58) && (s40 - 1 < s58))
                    {
                     s18=s18 - list[s58];
                    }
                  else
                     if ((s40 > s58) && (s40 < s60))
                        s18=s18 - list[s40];
                 }
              }
            if (s58<=s60)
              {
               if (s58>=s60)
                 {
                  list[s60]=s20;
                 }
               else
                 {
                  for( jj=s58 + 1;jj<=s60 - 1;jj++)
                    {
                     list[jj - 1]=list[jj];
                    }
                  list[s60 - 1]=s20;
                 }
              }
            else
              {
               for( jj=s58 - 1;jj>=s60;jj-- )
                 {
                  list[jj + 1]=list[jj];
                 }
               list[s60]=s20;
              }
            if (s70<=127)
              {
               s18=0;
               for(jj=s40;jj<=s38;jj++)
                 {
                  s18=s18 + list[jj];
                 }
              }
            f60=s18/(s38 - s40 + 1);
            if (fF8 + 1 > 31)
              {
               fF8=31;
              }
            else
               fF8=fF8 + 1;
//----
            if (fF8<=30)
              {
               if (f28 > 0)
                 {
                  f18=f8;
                 }
               else
                  f18=f8 - f28 * f90;
               if (f48 < 0)
                 {
                  f38=f8;
                 }
               else
                  f38=f8 - f48 * f90;
               fB8=series;
//{EasyLanguage does not have "continue" statement}
               if (fF8!=30)
                 {
                  continue;
                 }
               if (fF8==30)
                 {
                  fC0=series;
                  if (MathCeil(f78)>=1)
                    {
                     v4=MathCeil(f78);
                    }
                  else
                     v4=1;
                  fE8=MathCeil(v4);
                  if (MathFloor(f78)>=1)
                    {
                     v2=MathFloor(f78);
                    }
                  else
                     v2=1;
                  fE0=MathCeil(v2);
                  if (fE8==fE0)
                    {
                     f68=1;
                    }
                  else
                    {
                     v4=fE8 - fE0;
                     f68=(f78 - fE0)/v4;
                    }
                  if (fE0<=29)
                    {
                     v5=fE0;
                    }
                  else
                     v5=29;
                  if (fE8<=29)
                    {
                     v6=fE8;
                    }
                  else
                     v6=29;
                  fA8=(series - buffer[fF0 - v5]) * (1 - f68)/fE0 + (series - buffer[fF0 - v6]) * f68/fE8;
                 }
              }
            else
              {
               if (f98>=MathPow(fA0/f60, f88))
                 {
                  v1=MathPow(fA0/f60, f88);
                 }
               else
                  v1=f98;
               if (v1 < 1)
                 {
                  v2=1;
                 }
               else
                 {
                  if (f98>=MathPow(fA0/f60, f88))
                    {
                     v3=MathPow(fA0/f60, f88);
                    }
                  else
                     v3=f98;
                  v2=v3;
                 }
               f58=v2;
               f70=MathPow(f90, MathSqrt(f58));
               if (f28 > 0)
                 {
                  f18=f8;
                 }
               else
                 {
                  f18=f8 - f28 * f70;
                 }
               if (f48 < 0)
                 {
                  f38=f8;
                 }
               else
                 {
                  f38=f8 - f48 * f70;
                 }
              }
           }
         if (fF8 > 30)
           {
            f30=MathPow(f50, f58);
            fC0=(1 - f30) * series + f30 * fC0;
            fC8=(series - fC0) * (1 - f50) + f50 * fC8;
            fD0=f10 * fC8 + fC0;
            f20=-f30 * 2;
            f40=f30 * f30;
            fB0=f20 + f40 + 1;
            fA8=(fD0 - fB8) * fB0 + f40 * fA8;
            fB8=fB8 + fA8;
           }
         JMA= fB8;
        }
      if (fF0<=30)
        {
         JMA=0;
        }
//Print ("JMA is " + JMA + " shift is " + shift);
      ExtMapBuffer1[shift]=JMA;
//----
      if (shift>0)
        {
         AccountedBars=AccountedBars+1;
        }
     }
//----
   return(0);
  }
//+------------------------------------------------------------------+
