Regression_Channel_V2_v1

Download script
Author: KimIV
Regression_Channel_V2_v1

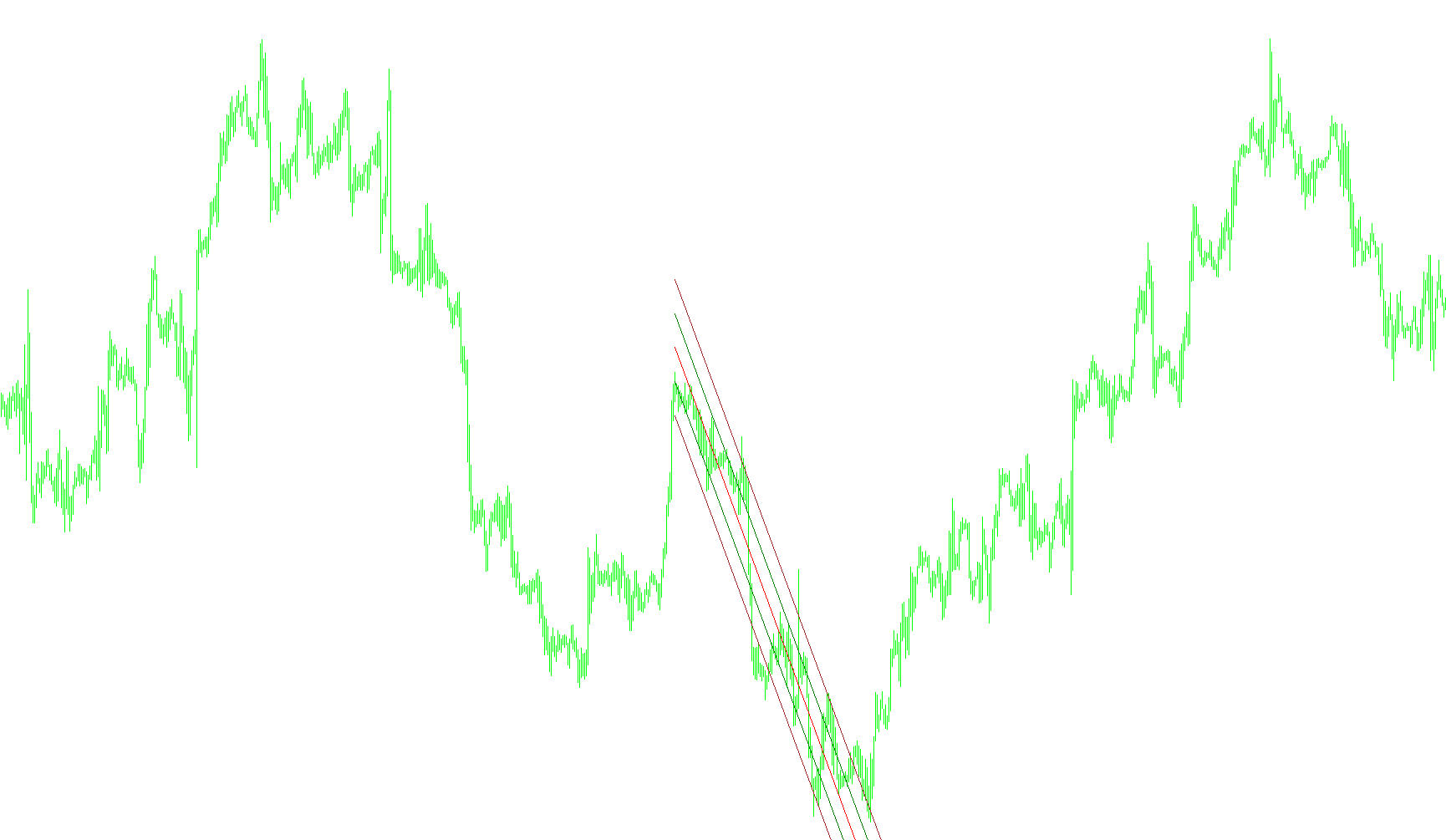

This script is designed to automatically generate a Regression Channel on your trading chart. A regression channel is a technical analysis tool used to visualize the trend of price movements and determine the "normal" range of volatility.

Instead of requiring you to manually draw lines, this tool uses mathematical logic to identify key historical price points and project them forward as a visual guide. Here is a breakdown of how the logic works:

1. Identifying the Trend Range

The script begins by scanning historical data to find a specific "swing" or movement in the market. It does this by looking for instances where the price deviates significantly from a Moving Average (the average price over a set period).

  • It looks for the lowest and highest points of these significant moves.
  • Once it identifies these peaks and valleys, it establishes the start and end boundaries of the channel.

2. Calculating the "Best Fit" Line (The Middle)

After finding the boundary points, the script performs a linear regression calculation. This is a statistical method used to find the "line of best fit" through a series of data points.

  • This creates the Middle Line of your channel, representing the core trend of the market during that specific period.

3. Measuring Volatility (Standard Deviation)

To determine how wide the channel should be, the script calculates the "Standard Deviation." In plain English, this measures how much the price typically fluctuates away from the middle line.

  • If the market is very volatile, the deviation will be large (resulting in a wider channel).
  • If the market is stable, the deviation will be small (resulting in a narrower channel).

4. Drawing the Channel Boundaries

Finally, the script draws three distinct sets of lines based on your preferences:

  • The Middle Line: The primary trend path.
  • The Inside Channel: Drawn using a smaller standard deviation multiplier. This represents the "core" area where price usually stays during a stable trend.
  • The Outside Channel: Drawn using a larger standard deviation multiplier. This represents the outer limits of the price movement; when the price breaks out of these lines, it often signifies a significant change in market momentum or a potential reversal.

Summary for the User

This tool automates the heavy lifting of technical drawing. It looks at history, calculates the most likely path of the current trend (the regression), measures how much the price "wiggles" (deviation), and then draws a multi-layered channel to help you visualize potential support, resistance, and volatility limits automatically.

Indicators Used
Moving average indicator
12 Views
0 Downloads
0 Favorites
Regression_Channel_V2_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                                           Regression_Channel.mq4 |
//|                                        Converted to MT4 by KimIV |
//| Modified bt MrPip to place lines at 2 different Standard Devs    |
//| Also makes StDev level an input                                  |
//+------------------------------------------------------------------+
/*[[
	Name := Regression_Channel
	Author := Copyright © 2004, MetaQuotes Software Corp.
	Link := http://www.metaquotes.net/
]]*/
#property copyright "KimIV"
#property link      "http://www.kimiv.ru"

#property indicator_chart_window

//------- Âíåøíèå ïàðàìåòðû èíäèêàòîðà -------------------------------
extern int    NumberName   = 1;
extern int    iPeriod      = 56;
extern double MAShoot      = 50;
extern int    LineWeight   = 1;
extern color LineColor = Red;
extern double StDevOutside = 1.618;
extern color Outside = Brown;
extern double StDevInside = 0.809;
extern color Inside = Green;


//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
void init() {
  ObjectCreate("Regression_middle"+NumberName, OBJ_TREND, 0, 0,0, 0,0);
	ObjectSet("Regression_middle"+NumberName, OBJPROP_COLOR, LineColor);
 	ObjectSet("Regression_middle"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
 	ObjectSet("Regression_middle"+NumberName, OBJPROP_WIDTH, LineWeight);
  ObjectCreate("Regression_Outside_upper" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
	ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_COLOR, Outside);
 	ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
 	ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_WIDTH, LineWeight);
  ObjectCreate("Regression_Outside_lower" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
 	ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_COLOR, Outside);
 	ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
 	ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_WIDTH, LineWeight);
  ObjectCreate("Regression_Inside_upper" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
	ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_COLOR, Inside);
 	ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
 	ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_WIDTH, LineWeight);
  ObjectCreate("Regression_Inside_lower" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
 	ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_COLOR, Inside);
 	ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
 	ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_WIDTH, LineWeight);

  Comment("Auto Regression channel");
}

//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
void deinit() {
  ObjectDelete("Regression_middle"+NumberName);
  ObjectDelete("Regression_Outside_upper" +NumberName);
  ObjectDelete("Regression_Outside_lower" +NumberName);
  ObjectDelete("Regression_Inside_upper" +NumberName);
  ObjectDelete("Regression_Inside_lower" +NumberName);
  Comment("");
}

//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
void start() {
  bool   check_low, check_high;
  bool   check_upper_chanel;
  double save_low, save_high;
  double MA, a1, a2, a3, b1, a_, b_, y1, y2, price;
  double stddiv_low, stddiv_high, tmp_div;
  double x_n_upOut, x_1_upOut, x_n_downOut, x_1_downOut;
  double x_n_upIn, x_1_upIn, x_n_downIn, x_1_downIn;
  double ratio_currency;
  int     shift;
  int    n, n_begin, n_end;
  int    MAType, MAPrice;
  int    save_shift_low, save_shift_high;

  save_low = -1;
  save_high = -1;
  save_shift_low = -1;
  save_shift_high = -1;

  check_low = false;
  check_high = false;

  MAType = MODE_SMA;
  MAPrice = PRICE_CLOSE;

  if (Close[1]>80) ratio_currency = 100;
  else ratio_currency = 10000;

  // Ïîèñê òî÷åê ïåðåñå÷åíèÿ ñ ÌÀ
  for (shift=Bars-1; shift>=0; shift--) {
  	MA = iMA(NULL, 0, iPeriod, 0, MAType, MAPrice, shift);
  	if (MA-MAShoot/ratio_currency>Close[shift])	{
  		if (Close[shift]<save_low || save_low==-1) {
  			check_low = true;
  			save_low = Close[shift];
  			save_shift_low = shift;
  		}
  	}

  	if (MA+MAShoot/ratio_currency<Close[shift]) {
  		if (save_high<Close[shift] || save_high==-1) {
  			check_high = true;
  			save_high = Close[shift];
  			save_shift_high = shift;
  		}
  	}

  	if (check_low) {
  		if (MA+MAShoot/ratio_currency<Close[shift])	{
  			check_low = false;
  			save_low = -1;
  		}
  	}

  	if (check_high) {
  		if (MA-MAShoot/ratio_currency>Close[shift]) {
  			check_high = false;
  			save_high = -1;
  		}
  	}
  }

  //Îïðåäåëåíèå ãðàíèö ïîñòðîåíèÿ êàíàëëà
  if (save_shift_low>save_shift_high) {
  	n_begin = save_shift_low;
  	n_end = save_shift_high;
  } else {
  	n_begin = save_shift_high;
  	n_end = save_shift_low;
  }

  if (n_end==0) n_end = 1; // Íóëåâîé áàð íå èñïîëüçîâàòü
  n = n_begin - n_end + 1; // äëèíà êàíàëà

  a1 = 0;
  a2 = 0;
  a3 = 0;
  b1 = 0;
  a_ = 0;
  b_ = 0;
  y1 = 0;
  y2 = 0;
  tmp_div = 0;

  if (Close[n_begin]<Close[n_end]) check_upper_chanel = true;
  else check_upper_chanel = false;

  for (shift=n_begin; shift>=n_end; shift--) {
  	if (check_upper_chanel) price = Low[shift];
  	else price = High[shift];

  	a1 = a1 + shift*price;
  	a2 = a2 + shift;
  	a3 = a3 + price;
  	b1 = b1 + shift*shift;
  }

  b_ = (n*a1 - a2*a3)/(n*b1 - a2*a2);
  a_ = (a3 - b_*a2)/n;
  y1 = a_ + b_*n_begin;
  y2 = a_ + b_*n_end;

 	ObjectSet("Regression_middle"+NumberName, OBJPROP_TIME1, Time[n_begin]);
 	ObjectSet("Regression_middle"+NumberName, OBJPROP_TIME2, Time[n_end]);
 	ObjectSet("Regression_middle"+NumberName, OBJPROP_PRICE1, y1);
 	ObjectSet("Regression_middle"+NumberName, OBJPROP_PRICE2, y2);

  for (shift=n_begin; shift>=n_end; shift--) {
  	if (check_upper_chanel) price = Low[shift];
	  else price = High[shift];

  	tmp_div = tmp_div + (price - (a_ + b_*shift))*(price - (a_ + b_*shift));
  }

  stddiv_low = MathSqrt(tmp_div/n);
  stddiv_high = MathSqrt(tmp_div/n);

  x_n_upOut = y1 + StDevOutside*stddiv_high;
  x_1_upOut = y2 + StDevOutside*stddiv_high;

  x_n_downOut = y1 - StDevOutside*stddiv_low;
  x_1_downOut = y2 - StDevOutside*stddiv_low;

  x_n_upIn = y1 + StDevInside*stddiv_high;
  x_1_upIn = y2 + StDevInside*stddiv_high;

  x_n_downIn = y1 - StDevInside*stddiv_low;
  x_1_downIn = y2 - StDevInside*stddiv_low;


//OUTSIDE
  //upper
 	ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_TIME1, Time[n_begin]);
 	ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_TIME2, Time[n_end]);
 	ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_PRICE1, x_n_upOut);
 	ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_PRICE2, x_1_upOut);
  //lower
 	ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_TIME1, Time[n_begin]);
 	ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_TIME2, Time[n_end]);
 	ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_PRICE1, x_n_downOut);
 	ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_PRICE2, x_1_downOut);

//INSIDE
  //upper
 	ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_TIME1, Time[n_begin]);
 	ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_TIME2, Time[n_end]);
 	ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_PRICE1, x_n_upIn);
 	ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_PRICE2, x_1_upIn);
  //lower
 	ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_TIME1, Time[n_begin]);
 	ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_TIME2, Time[n_end]);
 	ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_PRICE1, x_n_downIn);
 	ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_PRICE2, x_1_downIn);

}
//-------------------------------------------------------------------+
