Regression_Channel_V2_v3

Author: KimIV
Regression_Channel_V2_v3

The Regression Channel script is a visual analysis tool designed to help traders identify the primary trend of a financial asset by drawing a geometric "envelope" around price action. Instead of simply moving with every minor fluctuation, this tool seeks to find the overarching direction and the volatility boundaries of the market.

Core Logic and Mechanics

1. Trend Detection and Anchor Points The script begins by analyzing historical price data to find significant turning points. It looks for instances where the price deviates significantly from a Moving Average (a steady average of past prices). By identifying these "extremes"—specifically where the price pushes furthest away from the average before returning—the script determines the starting and ending points of the trend channel.

2. Dynamic Channel Construction Once the start and end points are established, the script performs a mathematical calculation to draw a straight regression line through those points. This serves as the "Middle Line" of the channel, representing the core equilibrium of the current trend. The script automatically determines whether it should follow the "Highs" or the "Lows" of the price action based on whether the market is currently moving upward or downward.

3. Volatility Boundaries (Standard Deviations) Beyond the middle trend line, the script calculates the "Standard Deviation." In simple terms, this measures how much the price typically fluctuates away from the center line. The script uses this measurement to project four additional lines:

  • The Outside Channel: These are the outer boundaries. They are set at a wider margin (a specific multiplier of the volatility) to show the absolute limits of the current market movement. If the price breaks significantly outside these lines, it may indicate a major trend reversal or an extreme exhaustion point.
  • The Inside Channel: These are inner boundaries drawn closer to the middle line. They represent the "normal" operating zone for the asset. Price action staying within these lines suggests a stable, healthy trend, while frequent touches of these lines can signal shifts in momentum.

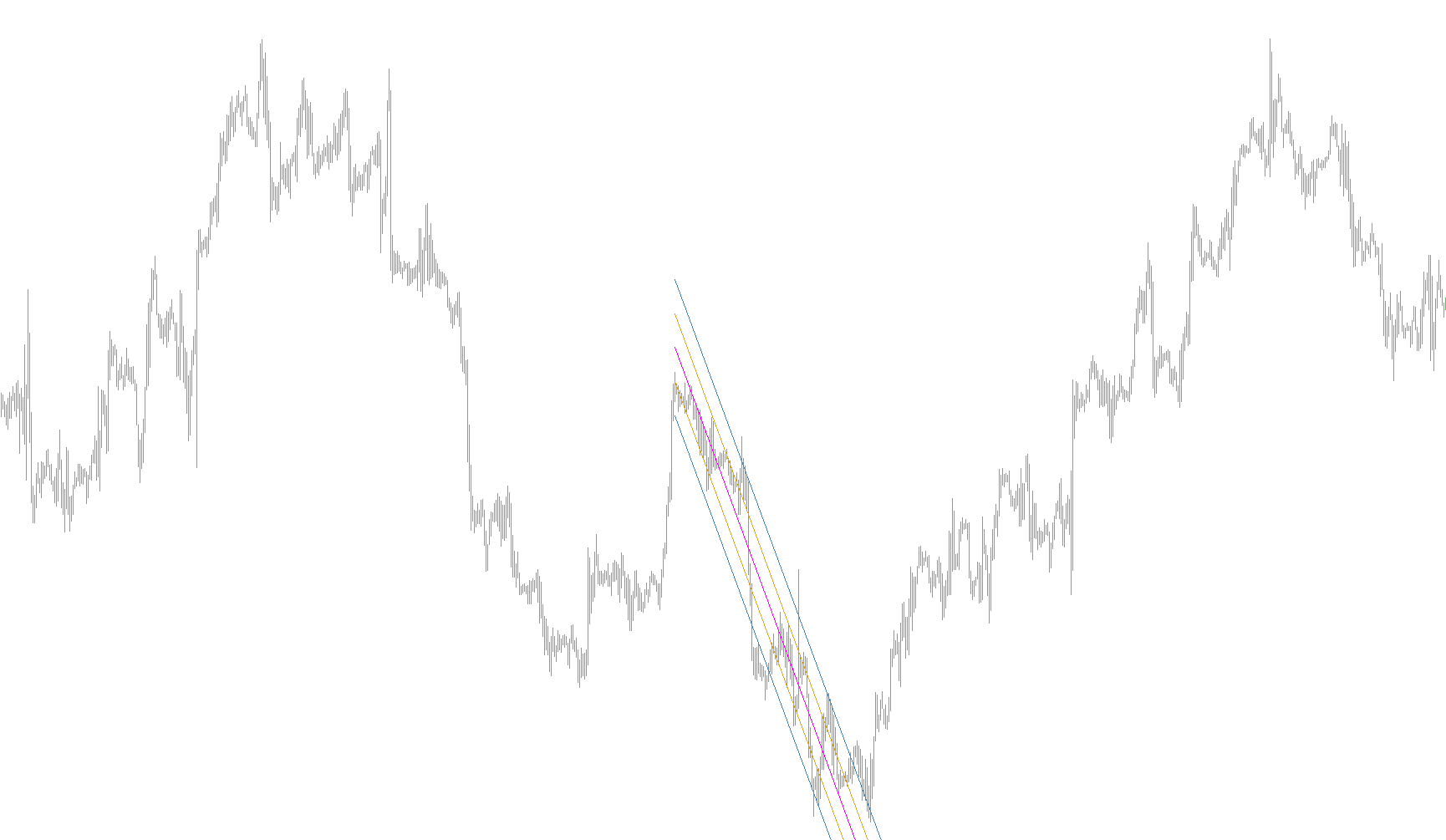

Summary of Visual Output

When applied to a chart, the script provides a structured view of market geometry:

  • The Center Line: Shows the direction and "path" of the trend.
  • Inner Boundaries: Define the immediate corridor where price is expected to stay.
  • Outer Boundaries: Define the outer "walls" of the trend, helping traders identify when the asset is reaching overextended levels.

By automating these calculations, the script removes the guesswork from drawing channels manually, providing a consistent visual framework for identifying support, resistance, and potential reversal zones based on statistical distribution.

Indicators Used
Moving average indicator
8 Views
0 Downloads
0 Favorites
Regression_Channel_V2_v3
//+------------------------------------------------------------------+
//|                                           Regression_Channel.mq4 |
//|                                        Converted to MT4 by KimIV |
//| Modified bt MrPip to place lines at 2 different Standard Devs    |
//| Also makes StDev level an input, with some Stache mods           |
//+------------------------------------------------------------------+
/*
	Name := Regression_Channel
	Author := Copyright © 2004, MetaQuotes Software Corp.
	Link := http://www.metaquotes.net/
*/
#property copyright "KimIV"
#property link      "http://www.kimiv.ru"
//----
#property indicator_chart_window
//------- Âíåøíèå ïàðàìåòðû èíäèêàòîðà -------------------------------
extern int    NumberName  =1;
extern int    iPeriod     =56;
extern double MAShoot     =50;
extern int    LineWeight  =1;
extern color LineColor=Magenta;
extern double StDevOutside=1.618;
extern color Outside=SteelBlue;
extern int  OutsideWeight=1;
extern double StDevInside=0.809;
extern color Inside=Goldenrod;
extern int  InsideWeight=1;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
  void init()
  {
   ObjectCreate("Regression_middle"+NumberName, OBJ_TREND, 0, 0,0, 0,0);
   ObjectSet("Regression_middle"+NumberName, OBJPROP_COLOR, LineColor);
   ObjectSet("Regression_middle"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
   ObjectSet("Regression_middle"+NumberName, OBJPROP_WIDTH, LineWeight);
   ObjectCreate("Regression_Outside_upper" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
   ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_COLOR, Outside);
   ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
   ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_WIDTH, OutsideWeight);
   ObjectCreate("Regression_Outside_lower" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
   ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_COLOR, Outside);
   ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
   ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_WIDTH, OutsideWeight);
   ObjectCreate("Regression_Inside_upper" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
   ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_COLOR, Inside);
   ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
   ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_WIDTH, InsideWeight);
   ObjectCreate("Regression_Inside_lower" +NumberName, OBJ_TREND, 0, 0,0, 0,0);
   ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_COLOR, Inside);
   ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_STYLE, STYLE_SOLID);
   ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_WIDTH, InsideWeight);
//----
   Comment("Auto Regression channel");
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
  void deinit()
  {
   ObjectDelete("Regression_middle"+NumberName);
   ObjectDelete("Regression_Outside_upper" +NumberName);
   ObjectDelete("Regression_Outside_lower" +NumberName);
   ObjectDelete("Regression_Inside_upper" +NumberName);
   ObjectDelete("Regression_Inside_lower" +NumberName);
   Comment("");
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
  void start()
  {
   bool   check_low, check_high;
   bool   check_upper_chanel;
   double save_low, save_high;
   double MA, a1, a2, a3, b1, a_, b_, y1, y2, price;
   double stddiv_low, stddiv_high, tmp_div;
   double x_n_upOut, x_1_upOut, x_n_downOut, x_1_downOut;
   double x_n_upIn, x_1_upIn, x_n_downIn, x_1_downIn;
   double ratio_currency;
   int     shift;
   int    n, n_begin, n_end;
   int    MAType, MAPrice;
   int    save_shift_low, save_shift_high;
//----
   save_low=-1;
   save_high=-1;
   save_shift_low=-1;
   save_shift_high=-1;
//----
   check_low=false;
   check_high=false;
//----
   MAType=MODE_SMA;
   MAPrice=PRICE_CLOSE;
//----
   if (Close[1]>80) ratio_currency=100;
   else ratio_currency=10000;
   // Ïîèñê òî÷åê ïåðåñå÷åíèÿ ñ ÌÀ
     for(shift=Bars-1; shift>=0; shift--)
     {
      MA=iMA(NULL, 0, iPeriod, 0, MAType, MAPrice, shift);
        if (MA-MAShoot/ratio_currency>Close[shift])
        {
           if (Close[shift]<save_low || save_low==-1)
           {
            check_low=true;
            save_low=Close[shift];
            save_shift_low=shift;
           }
        }
        if (MA+MAShoot/ratio_currency<Close[shift])
        {
           if (save_high<Close[shift] || save_high==-1)
           {
            check_high=true;
            save_high=Close[shift];
            save_shift_high=shift;
           }
        }
        if (check_low)
        {
           if (MA+MAShoot/ratio_currency<Close[shift])
           {
            check_low=false;
            save_low=-1;
           }
        }
        if (check_high)
        {
           if (MA-MAShoot/ratio_currency>Close[shift])
           {
            check_high=false;
            save_high=-1;
           }
        }
     }
   //Îïðåäåëåíèå ãðàíèö ïîñòðîåíèÿ êàíàëëà
     if (save_shift_low>save_shift_high)
     {
      n_begin=save_shift_low;
      n_end=save_shift_high;
      }
       else
      {
      n_begin=save_shift_high;
      n_end=save_shift_low;
     }
   if (n_end==0) n_end=1; // Íóëåâîé áàð íå èñïîëüçîâàòü
   n=n_begin - n_end + 1; // äëèíà êàíàëà
//----
   a1=0;
   a2=0;
   a3=0;
   b1=0;
   a_=0;
   b_=0;
   y1=0;
   y2=0;
   tmp_div=0;
//----
   if (Close[n_begin]<Close[n_end]) check_upper_chanel=true;
   else check_upper_chanel=false;
//----
     for(shift=n_begin; shift>=n_end; shift--)
     {
      if (check_upper_chanel) price=Low[shift];
      else price=High[shift];
//----
      a1=a1 + shift*price;
      a2=a2 + shift;
      a3=a3 + price;
      b1=b1 + shift*shift;
     }
   b_=(n*a1 - a2*a3)/(n*b1 - a2*a2);
   a_=(a3 - b_*a2)/n;
   y1=a_ + b_*n_begin;
   y2=a_ + b_*n_end;
//----
   ObjectSet("Regression_middle"+NumberName, OBJPROP_TIME1, Time[n_begin]);
   ObjectSet("Regression_middle"+NumberName, OBJPROP_TIME2, Time[n_end]);
   ObjectSet("Regression_middle"+NumberName, OBJPROP_PRICE1, y1);
   ObjectSet("Regression_middle"+NumberName, OBJPROP_PRICE2, y2);
     for(shift=n_begin; shift>=n_end; shift--)
     {
      if (check_upper_chanel) price=Low[shift];
      else price=High[shift];
//----
      tmp_div=tmp_div + (price - (a_ + b_*shift))*(price - (a_ + b_*shift));
     }
   stddiv_low=MathSqrt(tmp_div/n);
   stddiv_high=MathSqrt(tmp_div/n);
//----
   x_n_upOut=y1 + StDevOutside*stddiv_high;
   x_1_upOut=y2 + StDevOutside*stddiv_high;
   x_n_downOut=y1 - StDevOutside*stddiv_low;
   x_1_downOut=y2 - StDevOutside*stddiv_low;
   x_n_upIn=y1 + StDevInside*stddiv_high;
   x_1_upIn=y2 + StDevInside*stddiv_high;
   x_n_downIn=y1 - StDevInside*stddiv_low;
   x_1_downIn=y2 - StDevInside*stddiv_low;
   //OUTSIDE
   //upper
   ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_TIME1, Time[n_begin]);
   ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_TIME2, Time[n_end]);
   ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_PRICE1, x_n_upOut);
   ObjectSet("Regression_Outside_upper"+NumberName, OBJPROP_PRICE2, x_1_upOut);
   //lower
   ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_TIME1, Time[n_begin]);
   ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_TIME2, Time[n_end]);
   ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_PRICE1, x_n_downOut);
   ObjectSet("Regression_Outside_lower"+NumberName, OBJPROP_PRICE2, x_1_downOut);
   //INSIDE
   //upper
   ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_TIME1, Time[n_begin]);
   ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_TIME2, Time[n_end]);
   ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_PRICE1, x_n_upIn);
   ObjectSet("Regression_Inside_upper"+NumberName, OBJPROP_PRICE2, x_1_upIn);
   //lower
   ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_TIME1, Time[n_begin]);
   ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_TIME2, Time[n_end]);
   ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_PRICE1, x_n_downIn);
   ObjectSet("Regression_Inside_lower"+NumberName, OBJPROP_PRICE2, x_1_downIn);
  }
//-------------------------------------------------------------------+
